Capture Data For Reports and Receipts

Our compact MP-20 thermal printer offers simple printing of shipping labels, receipts, and other output reports for quality assurance. The printers don’t require toner or ink and connect easily through an ASCII serial output on shipping and postal scales.

Contact UsContact Us

Request a Quote

Need a Custom Solution?

Contact Us
Technical

Technical Specifications

View All Model Details

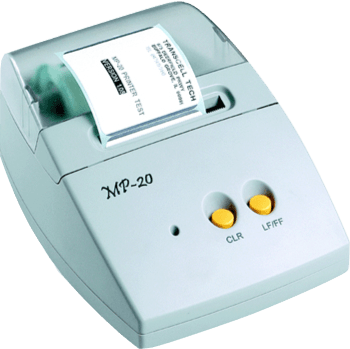

MP 20 Thermal Printer

M-20 Printer

MP 20 Thermal Printer

Specifications
Printing MethodThermal dot line printing
Printing Width48 mm
Number of dots/line384
Dots Density8 dots/mm
Printing Speed20 mm/sec
Feeding Speed24 mm/sec
Standard Paper Roll Size57mm (2.24”) x 36m (118’) (Thermal)
InterfaceSerial Interface (RS-232, Baud Rate 9600)
Current ConsumptionPrinting: 800mA
Feeding: 300mA
Stand By: 80mA
Fonts AvailableArial 14, Arial 20
Arial Narrow 14, Arial Narrow 20
Lucida 16, Courier 20
WeightApprox. 360g (Paper roll excluded)

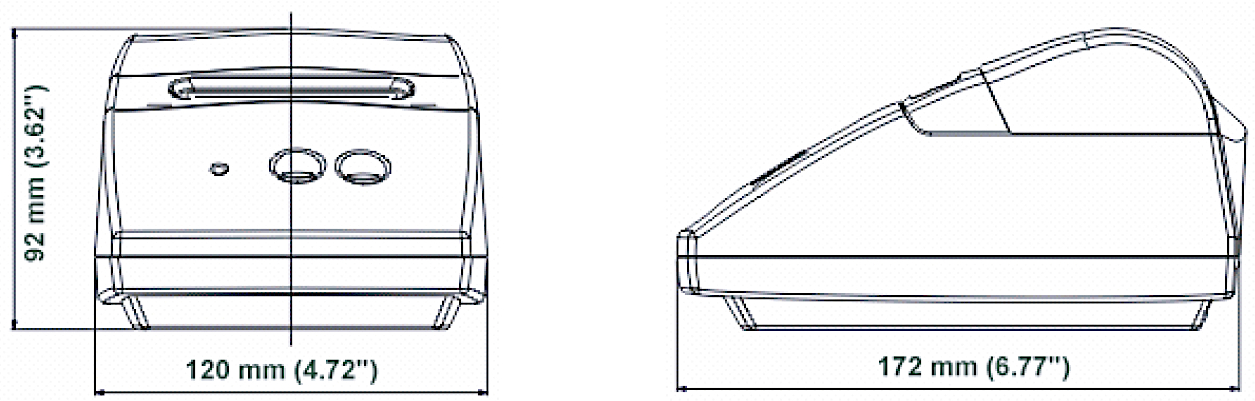

Dimensions120mm x 170mm x 90mm
Operation Temperature32F to 122ºF (0ºC to 50ºC)
Storage Temperature-13ºF to 149ºF (-25ºC to 65ºC)
Default FontChiblack 24
Bar Code:Code 39
Max Printable Label Size50(W) x 100(L) mm
Error Conditions DetectedPaper out, Head up, Overheat

Technical Data Sheet
