Applications

Applications

Where Everything Comes Together

We manufacture our junction boxes to withstand demanding environments, including manufacturing, construction, agriculture, and energy for optimal signal transmission. We use ABS and stainless steel for signal trim, excitation trim, and splicing enclosures to handle 1 to 8 channels. Multiple boxes can be easily daisy chained for summing multiple load cells.

Request a Quote

Need a Custom Solution?

Contact Us

Benefits

  • Environmental protection
  • Summing multiple load cells
  • Protection from signal interference
  • Easily daisy-chained
Technical

Technical Specifications

View All Model Details

J-BOX-V17.3

Junction Boxes

Specifications
Item DescriptionDimensionsEnclosure MaterialChannels

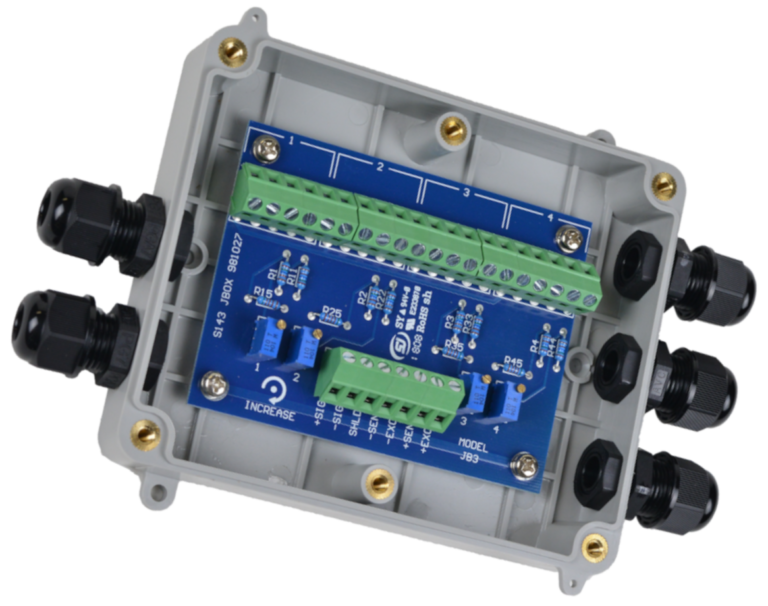

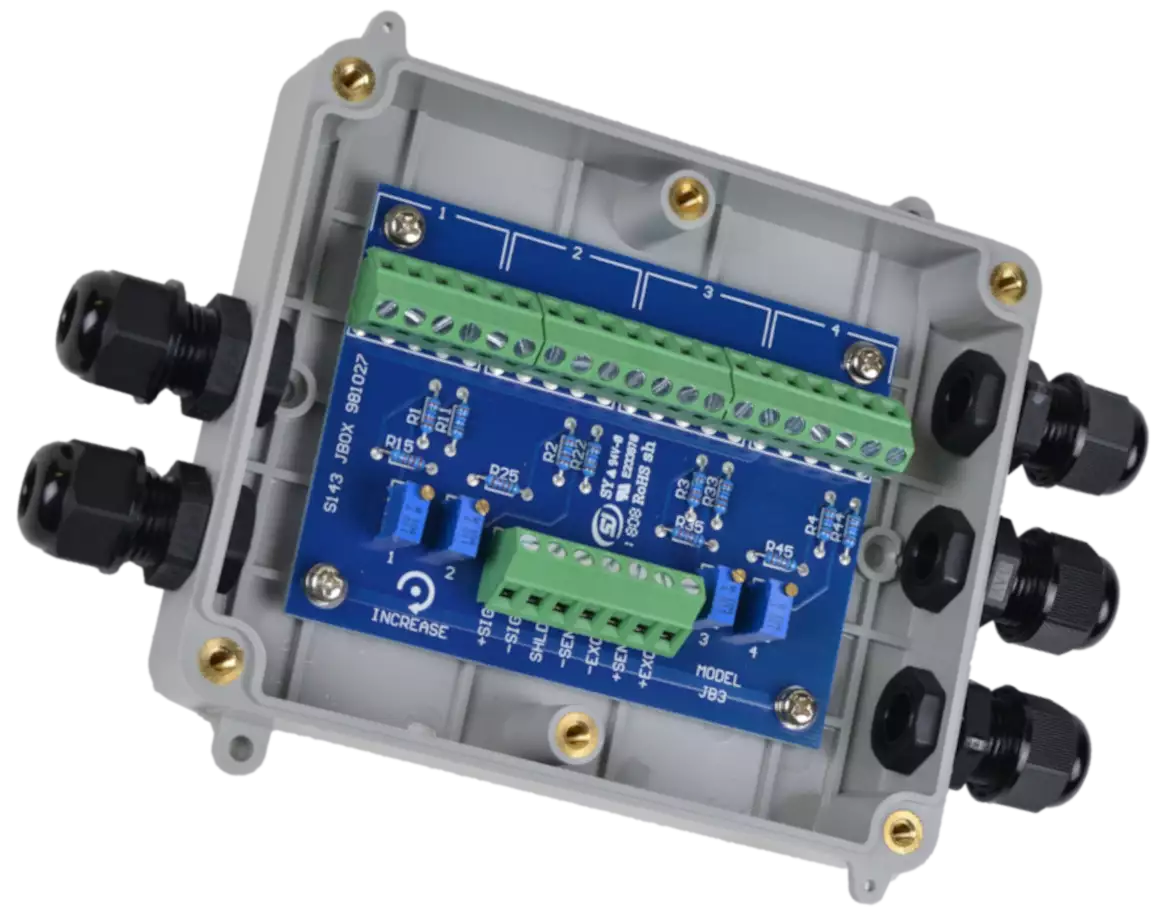

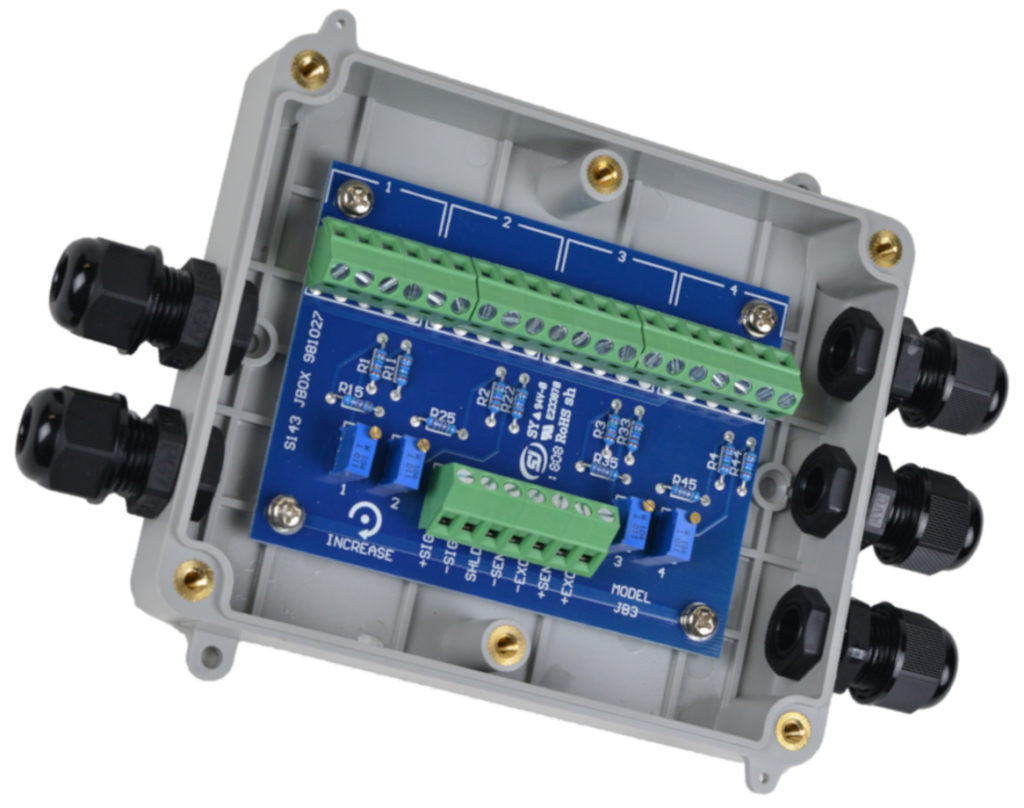

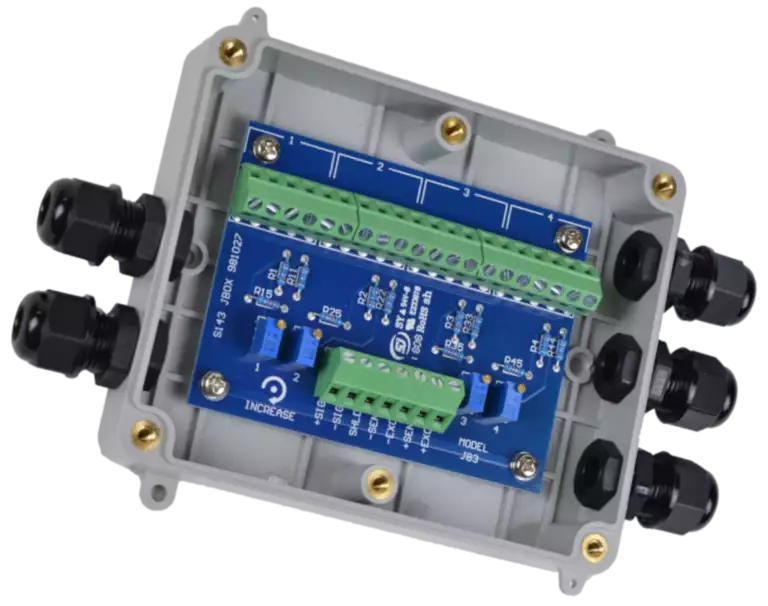

JB-FI-4 Signal Trim4.5? x 7.4? x 1.5?(114.3mm x 190.5mm x 38.1mm)ABS4
JB-FI-4 Excitation Trim4.5? x 7.4? x 1.5?(114.3mm x 190.5mm x 38.1mm)ABS4
JB-FI-6 Signal Trim4.5? x 7.4? x 1.5?(114.3mm x 190.5mm x 38.1mm)ABS4
Splicing Box4.5? x 7.4? x 1.5?(114.3mm x 190.5mm x 38.1mm)ABS4
JB-SS-4 Signal Trim8.5? x 7.5? x 2? (216mm x 190.5mm x 50.8mm)Stainless Steel4
JB-SS-4 Excitation Trim8.5? x 7.5? x 2? (216mm x 190.5mm x 50.8mm)Stainless Steel4
AJB-015 Signal Trim8.5? x 7.5? x 2? (216mm x 190.5mm x 50.8mm)Stainless Steel4
JB-SS-6 Signal Trim8.5? x 7.5? x 2? (216mm x 190.5mm x 50.8mm)Stainless Steel6
JB-SS-8 Signal Trim8.5? x 7.5? x 2? (216mm x 190.5mm x 50.8mm)Stainless Steel8
Technical Data Sheet

Cards

Transcell offers a quality selection of precision summing cards for upgrading equipment or replacement.

View Product
PCB 4 Rotated

Load Cell Cable

Our high-quality load cell cable ensures optimum performance for receiving and transmitting data to measuring systems.

View Product
Load Cell Cable

Engineering DesignEngineering Design

Precision Engineering and Manufacturing from the Ground Up

Transcell ensures the success of unique construction projects with vertical integration that adapts products to your architectural plans, environmental conditions, and other construction variables. Our in-house engineering and manufacturing deliver higher quality solutions faster.

Learn MoreLearn More

OEMsOEMs

Systems That Build Your Business

We partner with OEM equipment companies that need engineering services and measuring products that deliver optimum performance and confidence.

  • Cranes
  • Excavation equipment
  • Elevators
  • Forklifts
  • Scissor lifts
  • Jacking systems
  • And more

Learn MoreLearn More

Pantographic mobile crane rises towards the roof of a warehouse under construction
Part blueprints

Contact Us

We Make Your Challenge Our Business

Contact Us
