Our compact, low-profile pancake load cell installs easily and sets up quickly. Available in various sizes and capacities. Transcell compression disks are well suited for weighing applications and testing, including:

  • Tanks
  • Hoppers
  • Silos
  • Presses
  • And more
Request a Quote

Need a Custom Solution?

Contact Us

Features & Benefits

  • Nickel-plated alloy steel construction
  • Low sensitivity to extraneous loads
  • High stability
  • Corrosion resistant
  • Compact design
Technical

Technical Specifications

View All Model Details

DBSL V18.5

DBSL (200t) V18.5

DBSL-HT (1t)

DBSL-HT (3t-5t) V19.9

DBSL-KH V18.5

DBSLS

DBSL-SA V18.4

DBSL-SJ (0.5t~2t) V18.5

DBSL-SJ (5t~30t) V18.5

DBSL-TJ (1t_2t) V18.5

DBSL-XS (5t_10t) V18.4

DBSL-XS (20t) V18.4

DBSL-XS (60t/100t) V18.4

PTCH V18.4

PTCH (60t_100t) V18.6

PTCT V18.5

PTFT V18.4

PTFT (200t) V18.5

PTFT (500t) V19.5

PTSD V18.5

PTSH V18.5

PTST V18.5

PTST (50t/100t) V19.2

PWCD V18.5

DBSL V18.5

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.03% of rated output
Hysteresis± 0.03% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [19.69ft] / 10m [32.81ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance775 Ω / 387 Ω (≤20t)
Output Impedance700 Ω / 350 Ω (≤20t)
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-200t V18.5

Specifications
Rated Output2.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.5% of applied load
Nonlinearity± 0.5% of rated output
Hysteresis± 0.5% of rated output
Repeatability± 0.5% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [19.69ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance775 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-HT (1t)

Specifications
Rated Output0.6mV/V (Dual signal)
Zero Balance± 5% of rated output
Comprehensive Error± 1% of rated output
Safe Temp Range-20 to +70°C
Storage Temp-40 to +80°C
Bridge Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Safe Overload150% of capacity

DBSL-HT (3t-5t) V19.9/h3>
Specifications
Rated Output0-5 VDC
Zero Balance± 5% of rated output
Combined Error± 1% of rated output
Repeatability± 0.25% of rated output
Operating Temp Range-10 to +70°C
Bridge Resistance700 Ω
Insulation Resistance5000 MΩ
Max Excitation24 V DC/AC
Safe Overload150% of capacity
Cable Length1.25m [4.10ft]

DBSL-KH V18.5

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.03% of rated output
Hysteresis± 0.03% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [20.28ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance775 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSLS

Specifications
Rated Output1.75mV/V ± 15%
Zero Balance± 1% of rated output
Creep± 0.5% of applied load
Nonlinearity± 0.5% of rated output
Hysteresis± 0.5% of rated output
Repeatability± 0.5% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length5m [16.9ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance387 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-SA V18.4

Specifications
Rated Output2.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.03% of rated output
Hysteresis± 0.03% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [20.28ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance775 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-SJ (0.5t-2.0t) V18.5

Specifications
Rated Output2.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length5m [16.9ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance387 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-SJ (5t~30t) V18.5

Specifications
Rated Output2.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length5m [16.9ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance387 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-TJ (1t_2t) V18.5

Specifications
Rated Output2.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length5m [16.9ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance387 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-TJ (50t_120t) V18.5

Specifications
Rated Output2.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.1% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.1% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [20.28ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance775 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-XS (5t_10t) V18.4

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.03% of rated output
Hysteresis± 0.03% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [20.28ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance387 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-XS (20t) V18.4

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.03% of rated output
Hysteresis± 0.03% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [20.28ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance775 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

DBSL-XS (60t/100t) V18.4

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.03% of rated output
Hysteresis± 0.03% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [19.69ft] / 10m [32.81ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance775 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTCH V18.4

Specifications
Rated Output4.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.05% of rated output
Hysteresis± 0.05% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [9.84ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance385 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTCH (60t_100t) V18.6

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [10.14ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance385 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTCT V18.5

Specifications
Rated Output4.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.05% of rated output
Hysteresis± 0.05% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [9.84ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance385 Ω / 770 Ω (100klbs)
Output Impedance350 Ω / 700 Ω (100klbs)
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTFT V18.4

Specifications
Rated Output2.0mV/V ± 10%
Zero Balance± 1% of rated output
Creep± 0.05% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.05% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [9.84ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance350 Ω / 1050 Ω (100kg/200kg)
Output Impedance350 Ω / 1050 Ω (100kg/200kg)
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTFT (200t) V18.5

Specifications
Rated Output2.0mV/V ± 5%
Zero Balance± 3% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [10.14ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance410 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTFT (500t) V19.5

Specifications
Rated Output2.0mV/V ± 0.2 mV/V
Zero Balance± 0.015mV/V
Creep± 0.05% of applied load
Nonlinearity± 0.2% of rated output
Hysteresis± 0.2% of rated output
Repeatability± 0.1% of rated output
Temp Effect on Output± 0.015% of reading/°C
Temp Effect on Zero± 0.026% of output/°C
Cable Length5m [16.9ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload200% of capacity
Input Impedance770 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ

PTSD V18.5

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.025% of rated output
Hysteresis± 0.025% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [10.14ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance385 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTSH V18.5

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.05% of rated output
Hysteresis± 0.05% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [10.14ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance385 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PTST V18.5

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.05% of rated output
Hysteresis± 0.05% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [10.14ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance385 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

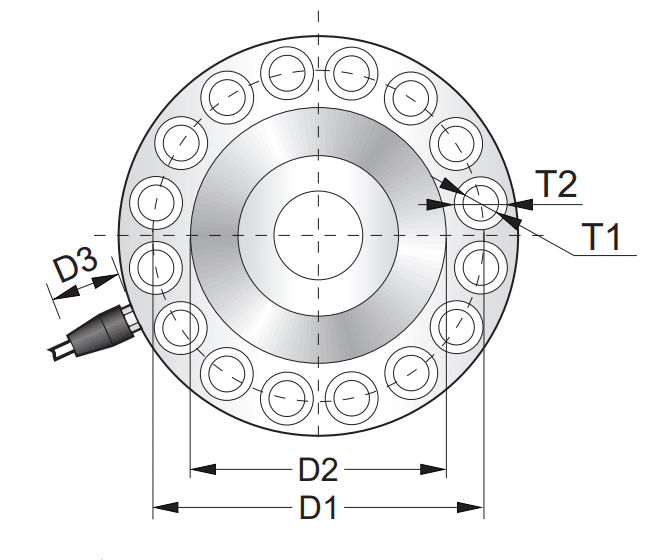

PTST (50t/100t) V19.2

Specifications
Rated Output3.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.1% of rated output
Hysteresis± 0.1% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [9.84ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance770 Ω (50t) / 385 Ω (100t)
Output Impedance700 Ω (50t) / 350 Ω (100t)
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC

PWCD V18.5

Specifications
Rated Output4.0mV/V ± 0.25%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.05% of rated output
Hysteresis± 0.05% of rated output
Repeatability± 0.02% of rated output
Temp Effect on Output± 0.0015% of reading/°C
Temp Effect on Zero± 0.0026% of output/°C
Cable Length3m [10.14ft]
Safe Temp Range-20 to +60°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance385 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC
DBSL V18.5 View Sheet
DBSL-200t V18.5 View Sheet
DBSL-HT-1t_Datasheet_Eng View Sheet
DBSL-HT-3t5t-V19.9_compressed View Sheet
DBSL-KH V18.5 View Sheet
DBSLS V18.5 View Sheet
DBSL-SA_Datasheet_Eng._V18.4 View Sheet
DBSL-SJ (0.5t~2t) V18.5 View Sheet
DBSL-TJ (1t 2t) V18.5 View Sheet
DBSL-TJ (50t 120t) V18.5 View Sheet
DBSL-XS (5t 10t)_Datasheet_Eng._V18.4 View Sheet
DBSL-XS (20t)_Datasheet_Eng._V18.4 View Sheet
DBSL-XS (60t 100t)_Datasheet_Eng._V18.4 View Sheet
PTCH_Datasheet_Eng._V18.4 View Sheet
PTCH(60t 100t) V18.6 View Sheet
PTCT V18.5 View Sheet
PTFT V18.4 View Sheet
PTFT-200t_Datasheet_Eng._V18.5 View Sheet
PTFT-500t_Datasheet_Eng._V19.5 View Sheet
PTSD V18.5 View Sheet
PTSH V18.5 View Sheet
PTST V18.5 View Sheet
PTST(50-100t) V19.2 View Sheet
PWCD V18.5 View Sheet

IndustriesIndustries

Experience to Solve Your Challenges

Proven product quality and performance combine with our engineering experience to solve force measurement challenges in any industry that need load cells and related force sensing equipment.

Part blueprints

Contact Us

We Make Your Challenge Our Business

Contact Us
