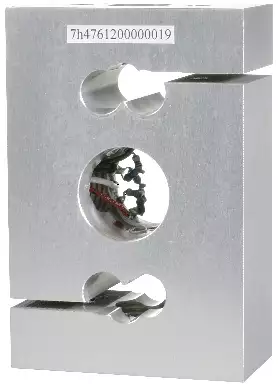

S-Beam Load Cell perform particularly well in applications with reliable load alignment



Request a Quote

Need a Custom Solution?

Contact Us

Strong Nonlinearity, Hysteresis, Repeatability

Aggressive Price Point

Technical

Technical Specifications

View All Model Details

Insert Schematic Here

Specifications
Rated Output2.0mV/V ± 10%
Zero Balance± 0.06mV/V
Nonlinearity± 0.1% of rated output
Hysteresis± 0.05% of rated output
Repeatability± 0.05% of rated output
Temp Effect on Output± 0.0014% of reading/°C
Temp Effect on Zero± 0.0018% of output/°C
Safe Overload150% of capacity
Cable Length0.3m [1ft]
Safe Temp Range-50 to +93°C
Temp Comp Range+15 to +72°C
Bridge Resistance1000 Ω
Deflection0.4mm
Insulation Resistance500 MΩ
Rated Excitation10 V DC/AC
Max Excitation20 V DC/AC



Technical Data Sheet
