Weighing Without Wires

Our wireless indicators transmit and receive data for a range of measuring systems and scales, which support production efficiency and safety. We offer Bluetooth and radio frequency communication models that can transmit up to 300 feet, depending on the protocol. The Bluetooth connection kits pair with Android and Apple smartphones and a free app.

Request a Quote

Need a Custom Solution?

Contact Us

Benefits

  • No cables to run
  • Improved risk management
  • Accurate remote monitoring
  • Easy dynamic measuring
  • Multiple display options: gross, net, center of zero, stable, tare, negative, low battery

Industries

  • Construction
  • Infrastructure management
  • Aerospace
  • Agriculture
  • Mining and energy
  • Chemical manufacturing and distribution
Technical

Technical Specifications

View All Model Details

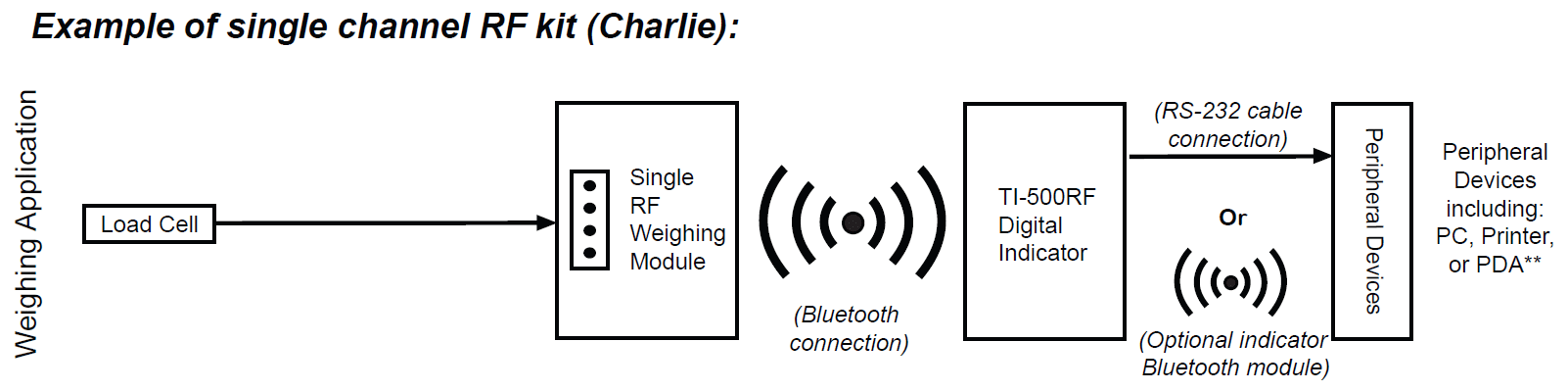

RF Kit

RF-Kit

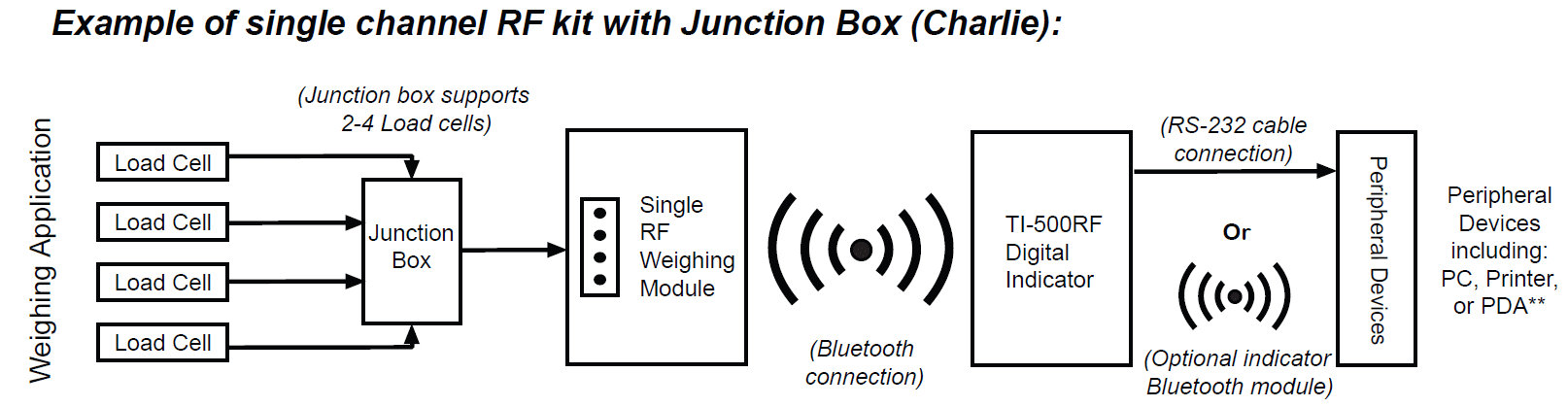

RF Kit with Junction Box

RF Kit with Junction Box

TI-500 RF

Specifications
Display: 0.8”, 6 Digit LCD w/LED backlight
Keyboard Functions:Units, Zero/Off, Net/Gross, Tare, On/Print
Display Resolution:Up to 50,000 external grads
Annunciators:Gross, Net, kg, lbs., Center of Zero, Stable, Tare, Negative, low battery
NIST Classification:Pending
Serial Port: Full Duplex RS-232C, Bluetooth
Operating Temperature: 14ºF to 104ºF (-10ºC to 40ºC)
Power Requirement:6-14 VDC
Warranty:14ºF to 104ºF (-10ºC to 40ºC)
DC Power Consumption:50 mA
Indicator Dimensions:3.2” x 6.8” x 2.3” (81mm x 173mm x 60mm
Battery:4 – AA alkaline
Enclosure:Aluminum

TI-500 SS-RF

Specifications
*TI-500 SS-RF specifications are the same as TI-500 RF except for the following:
Enclosure:Stainless Steel
Battery:6-Volt 3 Ah internal rechargeable lead acid
Indicator Dimensions: 8.9” x 5.5” x 2.9” (231mm x 140mm x 72mm)
Charging time: 44 hours, fully discharged battery

RF Weighing Module

Specifications
Load Cell Excitation:+3.3 VDC
Operating Temperature:14ºF to 104ºF (-10ºC to 40ºC)
Load Cell Current:Drives up to four 350 ? Load Cells
Keyboard Functions:On/Off
Analog Signal Input Range:+/- 3 mV/V max
Power Requirement:4.0 VDC – 6.5 VDC
Analog Sensitivity:0.3 µV/grad, minimum 0.6 µ/grad, recommended minimum for Legal-for-Trade
DC Power Consumption:20 mA + 10 mA/350 ? Load Cell
A/D Resolution:Up to 200,000 Internal Counts @ 3 mV/V
Warranty: year limited warranty applies
Technical Data Sheet

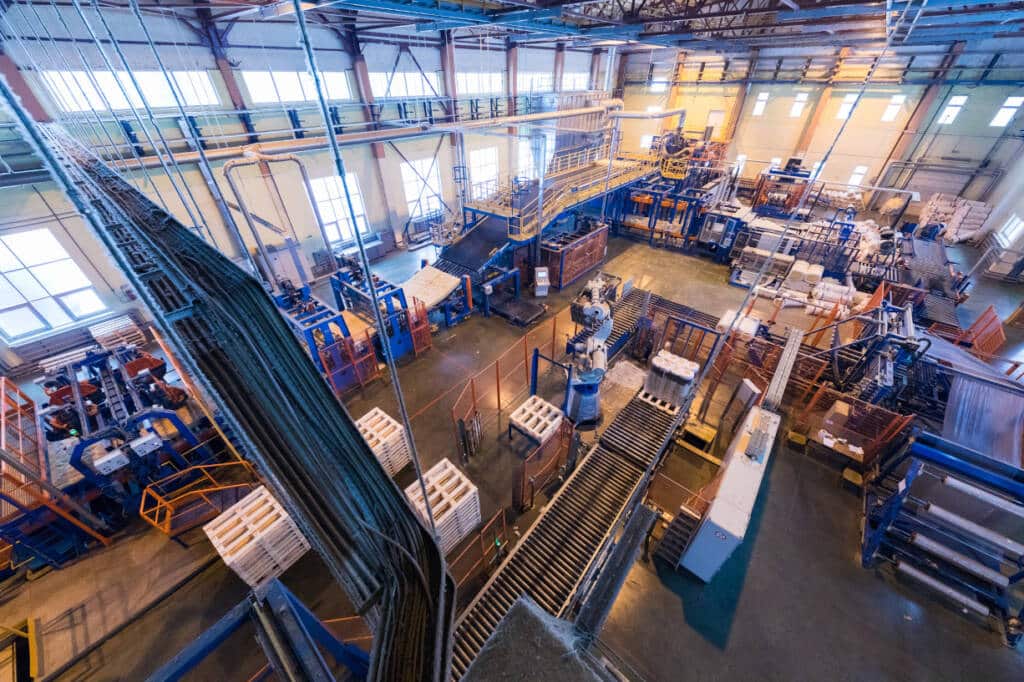

Manufacturing factory

Engineering DesignEngineering Design

Precision Engineering and Manufacturing from the Ground Up

Transcell ensures the success of unique construction projects with vertical integration that adapts products to your architectural plans, environmental conditions, and other construction variables. Our in-house engineering and manufacturing deliver higher quality solutions faster.

Learn MoreLearn More

Instrumentation

Our indicators and controllers can quickly process and deliver data, including via wireless protocols such as Bluetooth, WiFi, RF, and more.

View Product
Wireless communication instrument

Junction Boxes

Our low-profile junction boxes protect your multi-channel cards in demanding environments. We offer ABS or stainless steel models, depending on the size.

View Product
JB-FI-4 Signal Trim Junction Box

Wireless Communication

Our kits for wireless communication transmit and receive data over Bluetooth, WiFi, or radio frequency (RF) for weigh modules, floor scales, and weigh beams.

View Product

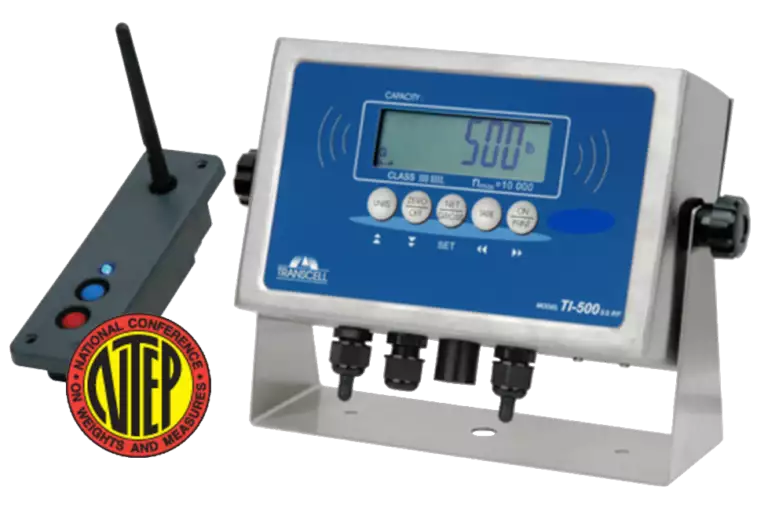

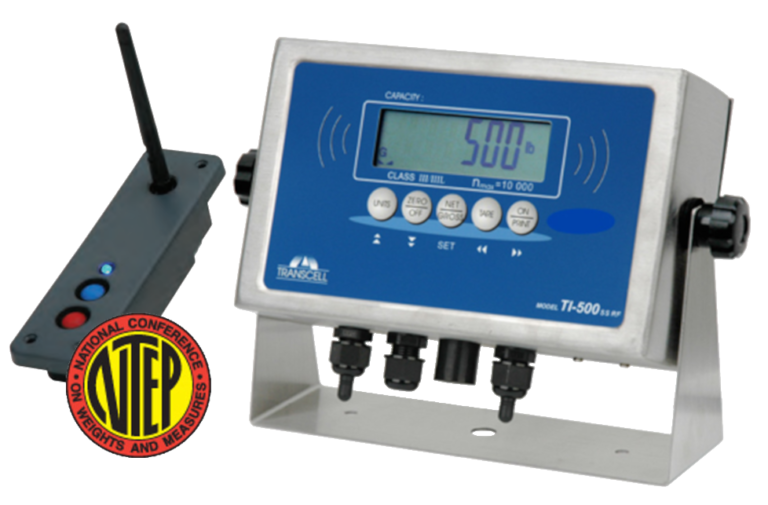

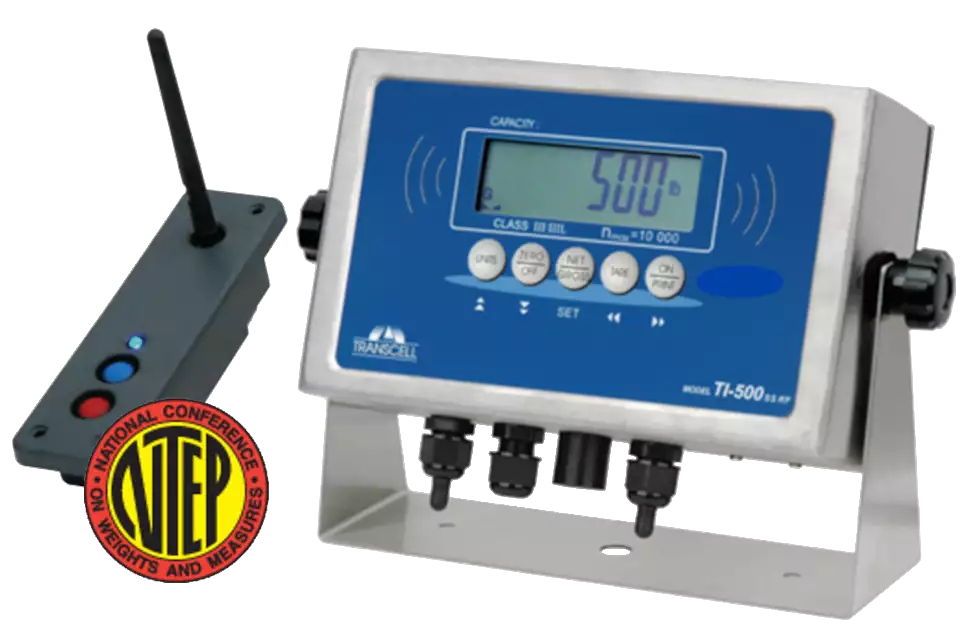

TI 500 FR SS Trans B

Indicators & Controllers

Our indicators and controllers are engineered and designed to deliver simple weighing displays, mult-data processing, and functionality.

View Product
TI-500SL Weighing Indicator

OEMsOEMs

Systems That Build Your Business

We partner with OEM equipment companies that need engineering services and measuring products that deliver optimum performance and confidence.

  • Cranes
  • Excavation equipment
  • Elevators
  • Forklifts
  • Scissor lifts
  • Jacking systems
  • And more

Learn MoreLearn More

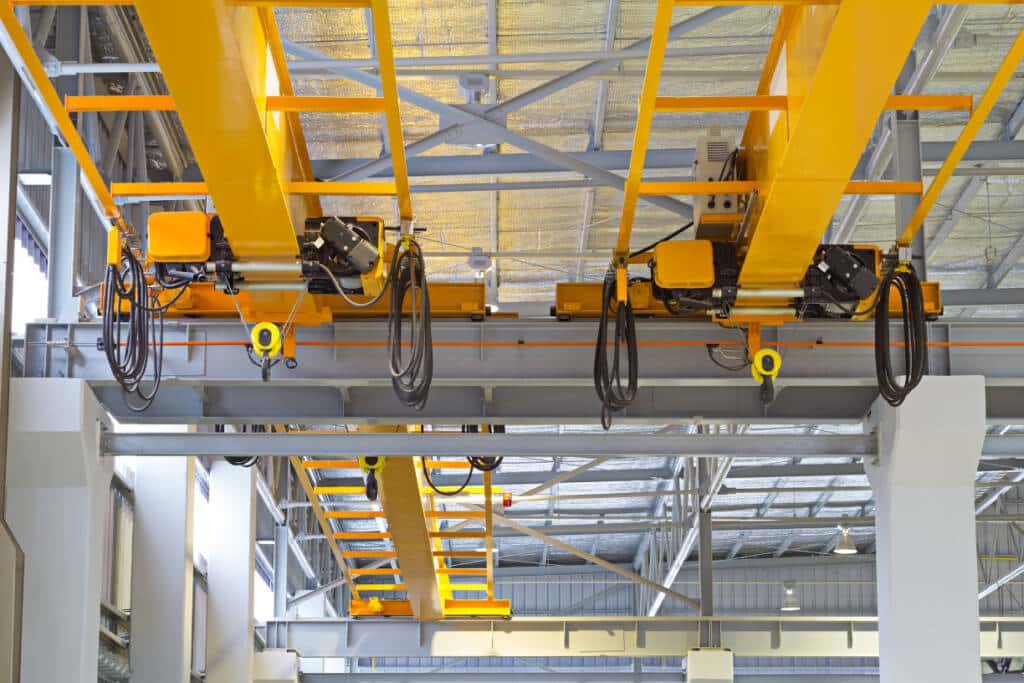

Overhead Crane Factory
