Load Cells for all Lloyd Instruments Materials Testing Machines
Product Description

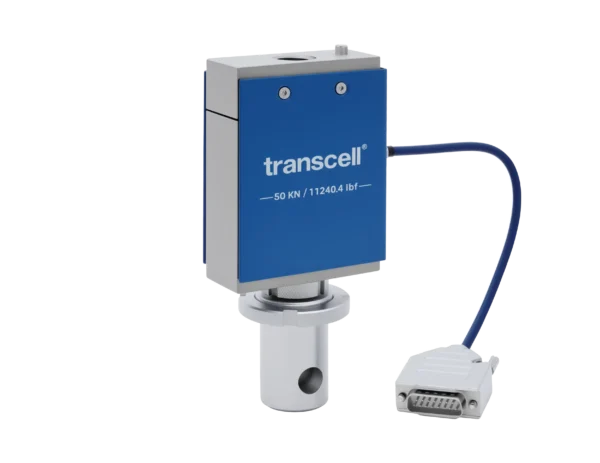

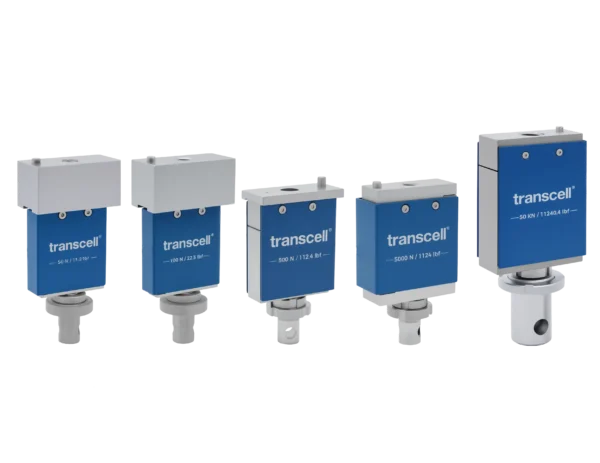

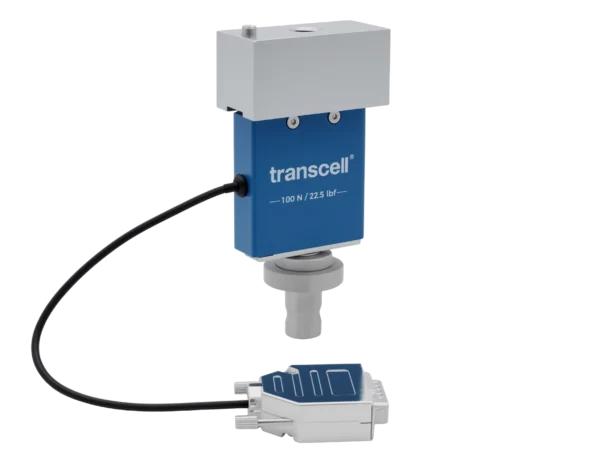

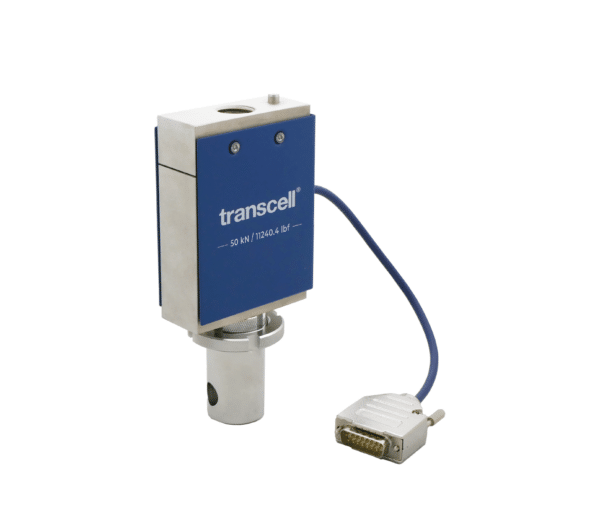

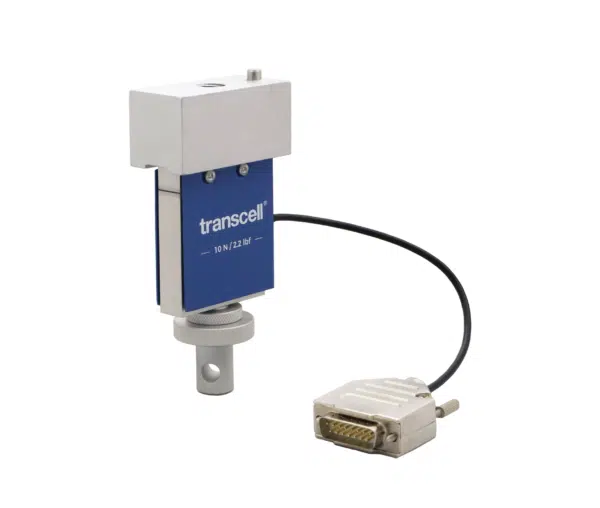

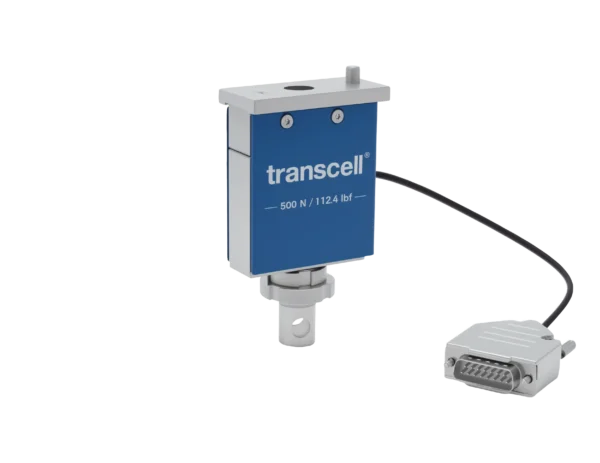

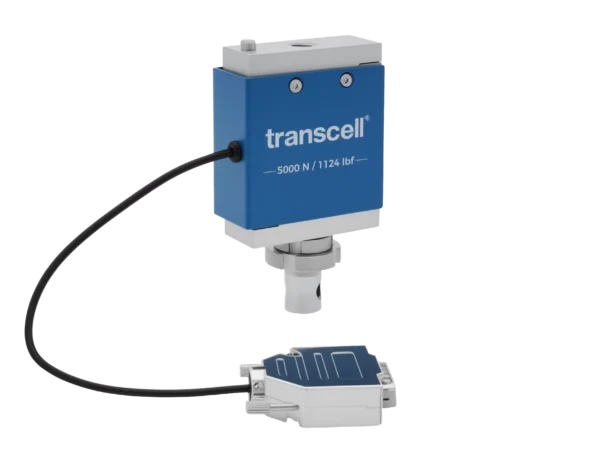

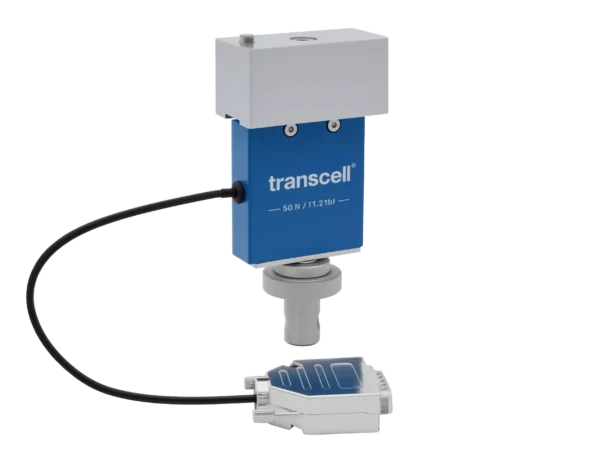

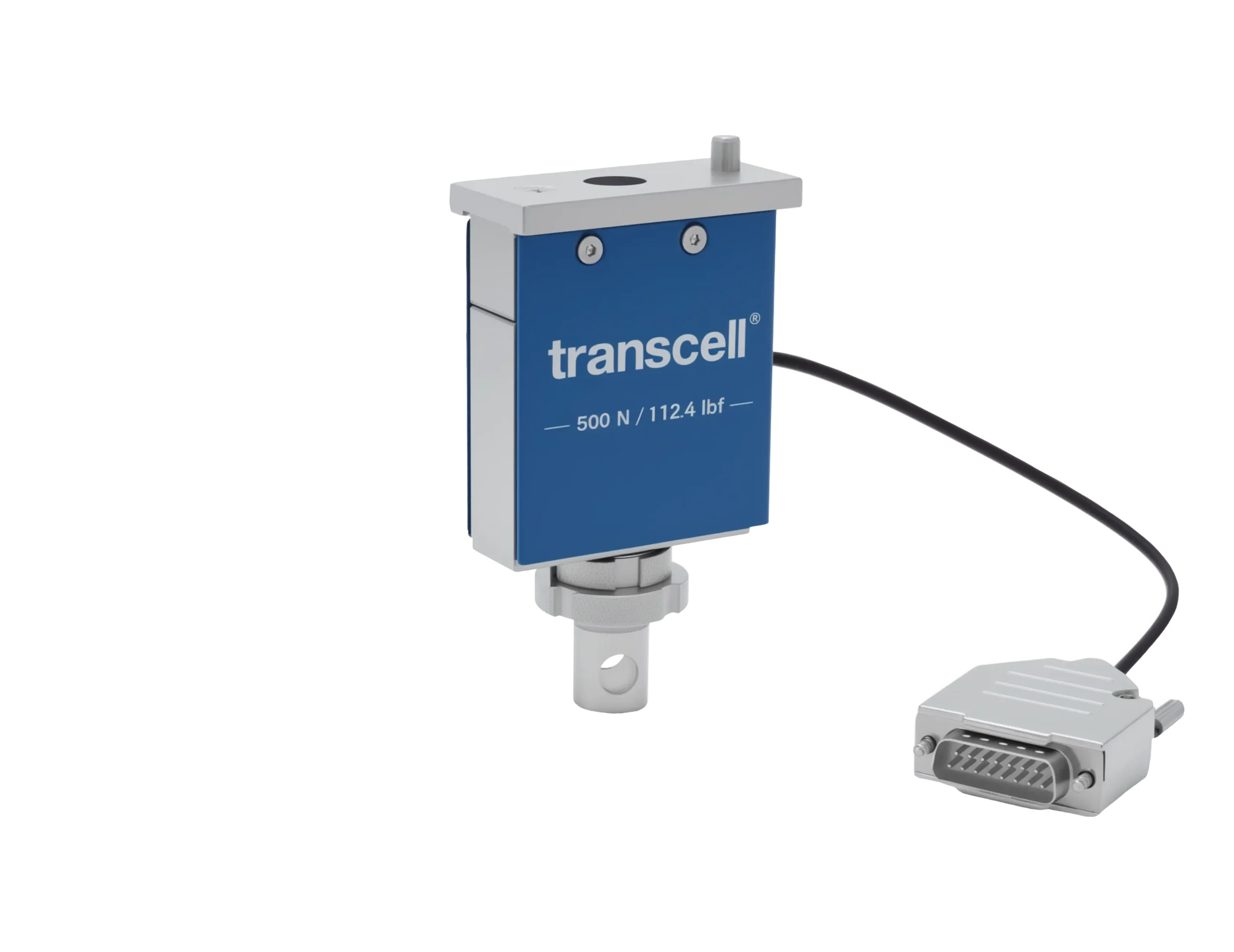

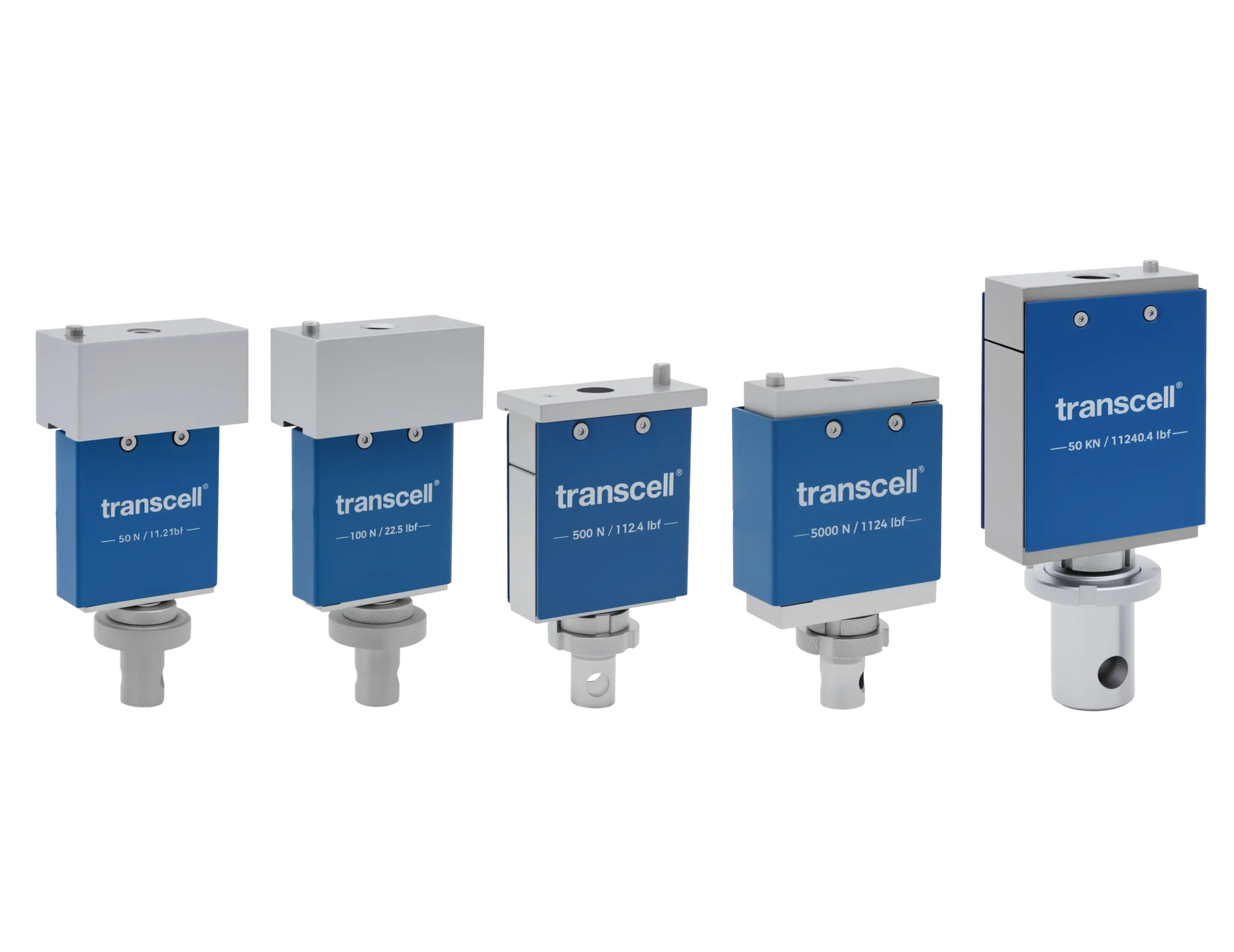

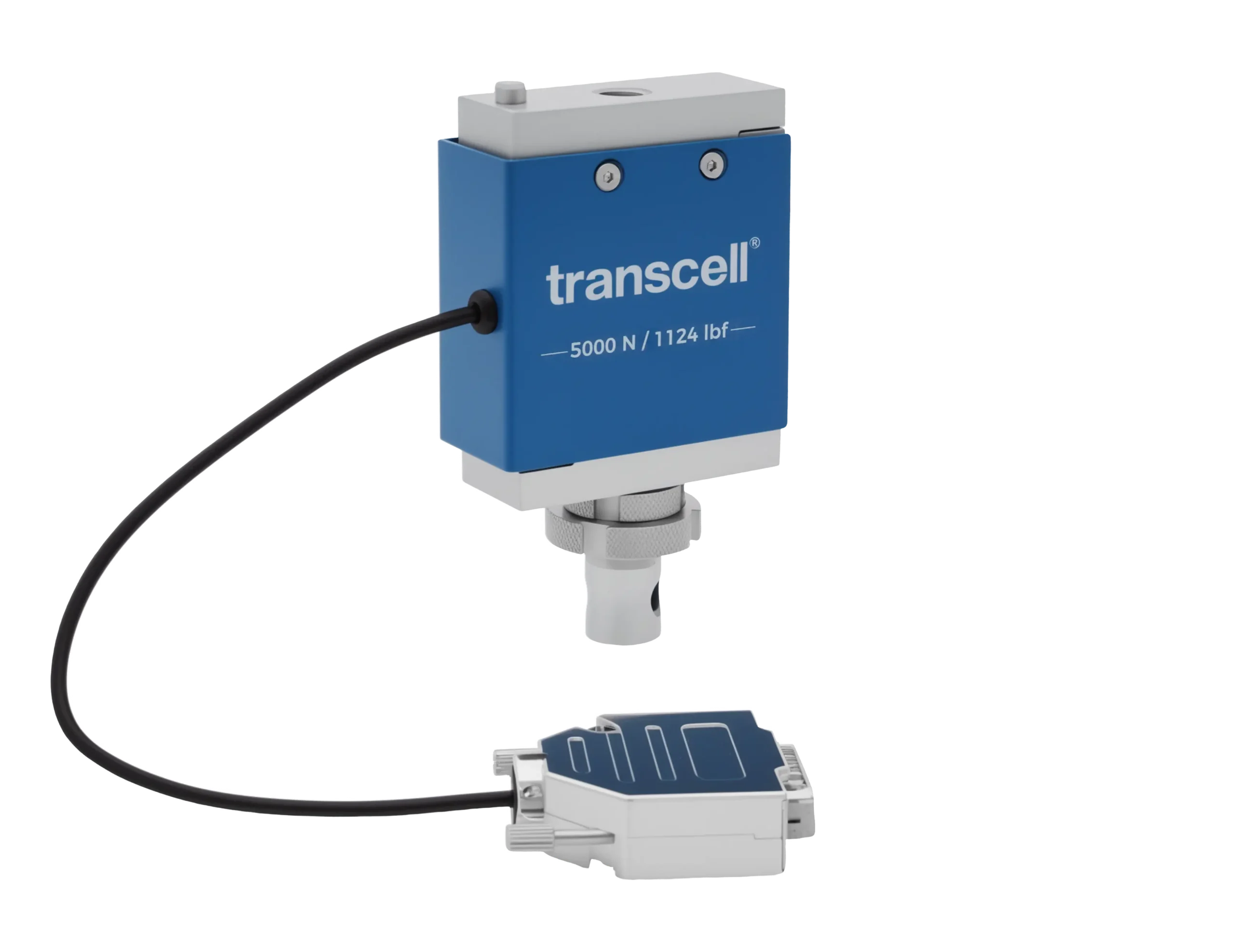

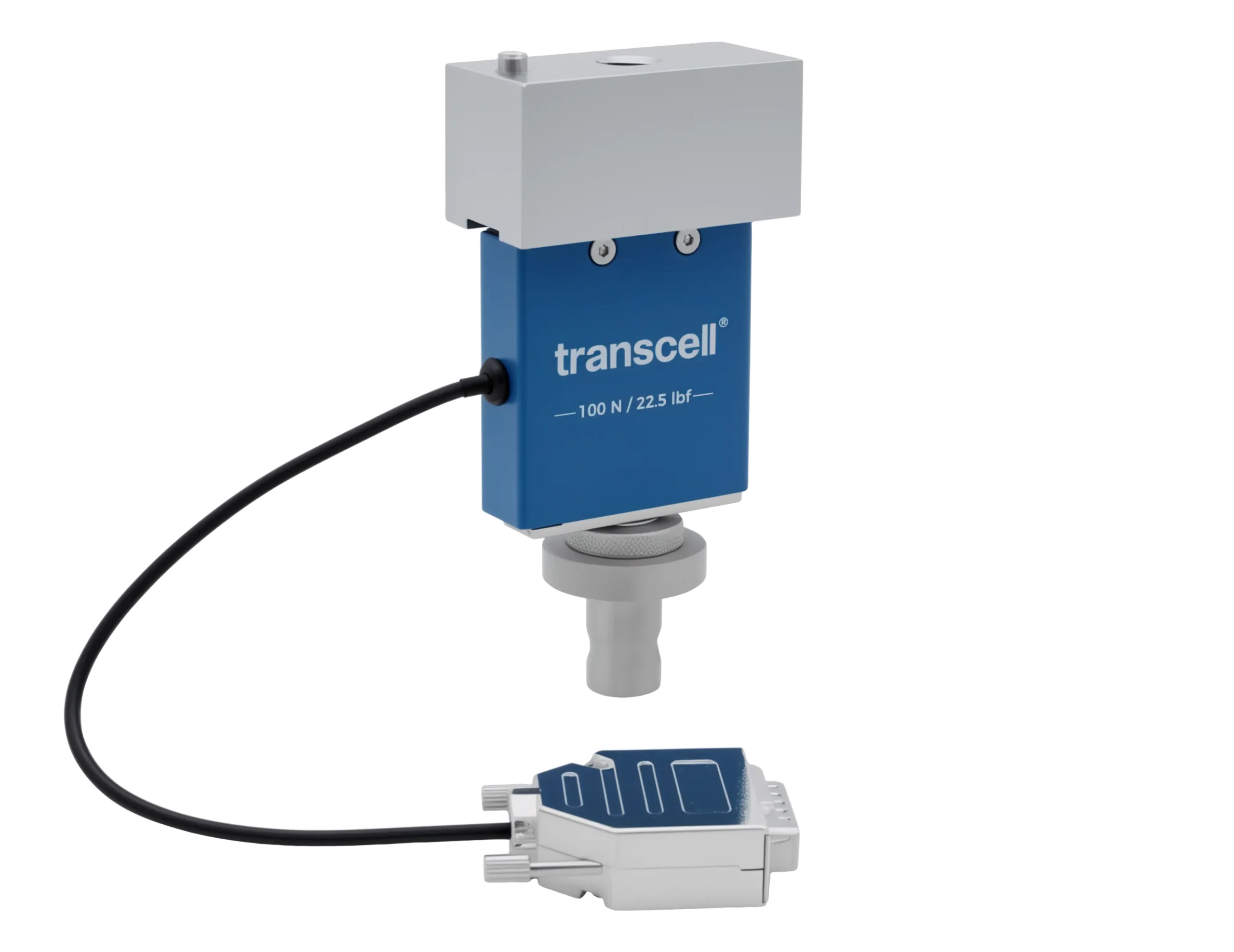

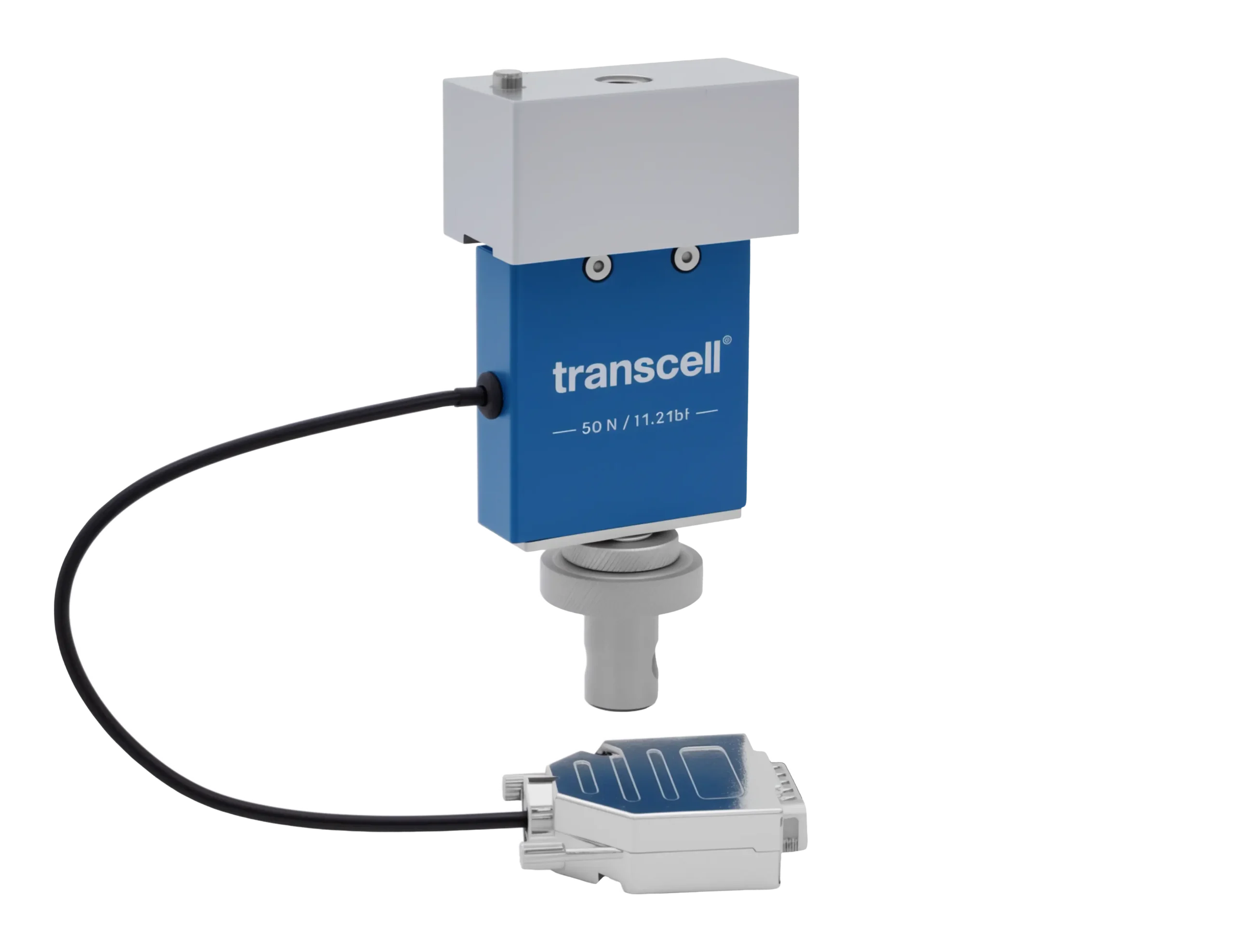

A1 Series Lloyd Instruments load cell overview
The A1 Series are plug-and-play replacement load cells for the entire line of Lloyd Instruments materials testing machines, designed as direct drop-in upgrades for the Lloyd Instruments XLC and YLC series. Each A1 load cell connects to the machine's existing wiring without modification, restoring full test functionality immediately. The A1 Series improves on the original XLC and YLC designs with more responsive electronics, improved measurement performance, and more generous safe overload protection across all capacity models. Capacities range from ±10 N to ±100 kN, covering the full span of Lloyd Instruments machine load ranges. Each unit ships in a protective carrying case with an anti-static foam interior that guards against both electrical and mechanical shock, and includes the required connector and a 15.8 mm (5/8 in) or 31.7 mm (1¼ in) stainless or aluminum eye-end adapter depending on the model.
Compatible Lloyd Instruments machines
The A1 Series has been verified for plug-and-play compatibility with the following Lloyd Instruments materials testing machines. Select the A1 model matching your machine's current load cell capacity.
Lloyd Instruments LS1 · LS2.5 · LS5 · LS100 Plus
Lloyd Instruments LR50K Plus · LR100K Plus · LR150K Plus
Lloyd Instruments LFPlus · TA1 Texture Analysis · FT1 Friction Testing
Technical notes
The A1 Series connects to the Lloyd Instruments machine via the included connector with no wiring modification required. The eye-end adapter attaches to the load cell's threaded connection and links to the machine's load train. Select the A1 model matching your existing XLC or YLC load cell capacity. For the best measurement accuracy, calibrate the A1 load cell to the specific machine it will be used with after installation.
Each A1 Series load cell ships complete and ready to install:
| ➤ | A1 Series load cell with required connector and electronics |
| ➤ | 15.8 mm (5/8 in) or 31.7 mm (1¼ in) eye-end adapter (model dependent) |
| ➤ | Protective carrying case with anti-static foam interior |
| A1 Model | Capacity | XLC Crossover | YLC Crossover |
| TC-OLP-0010-A1 | ±10 N | XLC-0010-A1 (01/2360) | YLC-0010-A1 (01/3872) |
| TC-OLP-0020-A1 | ±20 N | XLC-0020-A1 (01/2950) | YLC-0020-A1 (01/3873) |
| TC-OLP-0050-A1 | ±50 N | XLC-0050-A1 (01/2361) | YLC-0050-A1 (01/3874) |
| TC-OLP-0100-A1 | ±100 N | XLC-0100-A1 (01/2480) | YLC-0100-A1 (01/3875) |
| TC-OLP-0250-A1 | ±250 N | XLC-0250-A1 (01/3048) | YLC-0250-A1 (01/3876) |
| TC-OLP-0500-A1 | ±500 N | XLC-0500-A1 (01/2362) | YLC-0500-A1 (01/3877) |
| TC-OLP-1000-A1 | ±1,000 N | XLC-1000-A1 (01/2419) | YLC-1000-A1 (01/3878) |
| TC-OLP-2500-A1 | ±2,500 N | XLC-2500-A1 (01/2363) | YLC-2500-A1 (01/3879) |
| TC-OLP-5000-A1 | ±5,000 N | XLC-5000-A1 (01/2464) | YLC-5000-A1 (01/3880) |
| TC-OLP-10K-A1 | ±10 kN | XLC-10K-A1 (01/2365) | YLC-10K-A1 (01/3962) |
| TC-OLP-20K-A1 | ±20 kN | XLC-20K-A1 (01/2417) | N/A |
| TC-OLP-30K-A1 | ±30 kN | XLC-30K-A1 (01/2366) | N/A |
| TC-OLP-50K-A1 | ±50 kN | XLC-50K-A1 (01/2367) | N/A |
| TC-100K-A1 | ±100 kN | XLC-100K-A1 (01/2896) | N/A |
Select the A1 model that matches your existing Lloyd Instruments load cell. No wiring or mounting changes are required when replacing XLC or YLC models:
| A1 Model | Capacity | XLC Crossover | YLC Crossover |
| TC-OLP-0010-A1 | ±10 N | XLC-0010-A1 (01/2360) | YLC-0010-A1 (01/3872) |
| TC-OLP-0020-A1 | ±20 N | XLC-0020-A1 (01/2950) | YLC-0020-A1 (01/3873) |
| TC-OLP-0050-A1 | ±50 N | XLC-0050-A1 (01/2361) | YLC-0050-A1 (01/3874) |
| TC-OLP-0100-A1 | ±100 N | XLC-0100-A1 (01/2480) | YLC-0100-A1 (01/3875) |
| TC-OLP-0250-A1 | ±250 N | XLC-0250-A1 (01/3048) | YLC-0250-A1 (01/3876) |
| TC-OLP-0500-A1 | ±500 N | XLC-0500-A1 (01/2362) | YLC-0500-A1 (01/3877) |
| TC-OLP-1000-A1 | ±1,000 N | XLC-1000-A1 (01/2419) | YLC-1000-A1 (01/3878) |
| TC-OLP-2500-A1 | ±2,500 N | XLC-2500-A1 (01/2363) | YLC-2500-A1 (01/3879) |
| TC-OLP-5000-A1 | ±5,000 N | XLC-5000-A1 (01/2464) | YLC-5000-A1 (01/3880) |
| TC-OLP-10K-A1 | ±10 kN | XLC-10K-A1 (01/2365) | YLC-10K-A1 (01/3962) |
| TC-OLP-20K-A1 | ±20 kN | XLC-20K-A1 (01/2417) | N/A |
| TC-OLP-30K-A1 | ±30 kN | XLC-30K-A1 (01/2366) | N/A |
| TC-OLP-50K-A1 | ±50 kN | XLC-50K-A1 (01/2367) | N/A |
| TC-100K-A1 | ±100 kN | XLC-100K-A1 (01/2896) | N/A |
Specifications
Comprehensive error: ±0.5 % of reading in upper 99% of capacity
Dimensions / 3D Drawings
Note: You may need a software that can open/view STEP files.
| PART ID | MOUNTING THREAD | EYE-END ADAPTER |
|---|---|---|
| TC-OLP-0010-A1 | M12x1.75 | 15.8 mm [5/8 in] Aluminum |
| TC-OLP-0020-A1 | M12x1.75 | 15.8 mm [5/8 in] Aluminum |
| TC-OLP-0050-A1 | M12x1.75 | 15.8 mm [5/8 in] Aluminum |
| TC-OLP-0100-A1 | M12x1.75 | 15.8 mm [5/8 in] Aluminum |
| TC-OLP-0250-A1 | M12x1.75 | 15.8 mm [5/8 in] Aluminum |
| TC-OLP-0500-A1 | M12x1.75 | 15.8 mm [5/8 in] Stainless |
| TC-OLP-1000-A1 | M12x1.75 | 15.8 mm [5/8 in] Stainless |
| TC-OLP-2500-A1 | M12x1.75 | 15.8 mm [5/8 in] Stainless |
| TC-OLP-5000-A1 | M12x1.75 | 15.8 mm [5/8 in] Stainless |
| TC-OLP-20K-A1 | M20x2.5 | 31.7 mm [11/4 in] Stainless |
| TC-OLP-30K-A1 | M20x2.5 | 31.7 mm [11/4 in] Stainless |
| TC-OLP-50K-A1 | M20x2.5 | 31.7 mm [11/4 in] Stainless |
| TC-100K-A1 | M24x2 | 31.7 mm [11/4 in] Stainless |
-
Data Sheets
Download Now
