The Standard for Weighing Safely

The Transcell intrinsically safe indicator meets explosive standard ExibIIT4Gb. It is intended as a control system for explosive or flammable operations. We designed the component to convert weight values to 4-20mA output, 0-10V output, or RS485 signals.

Request a Quote

Need a Custom Solution?

Contact Us

Features and Benefits

  • Weight or mV/V calibration
  • Less than 2W power consumption
  • Integrates with up to 4 load cells
  • Suitable for resistive strain gage load cells
  • Multiple weight displays: net, gross, accumulator, piece count, lock mode
  • Auto shutoff
  • Low battery display
  • Multiple weighing modes: net/gross, accumulator, piece count, lock mode
  • Low battery detection, Auto shut off
Technical

Technical Specifications

View All Model Details

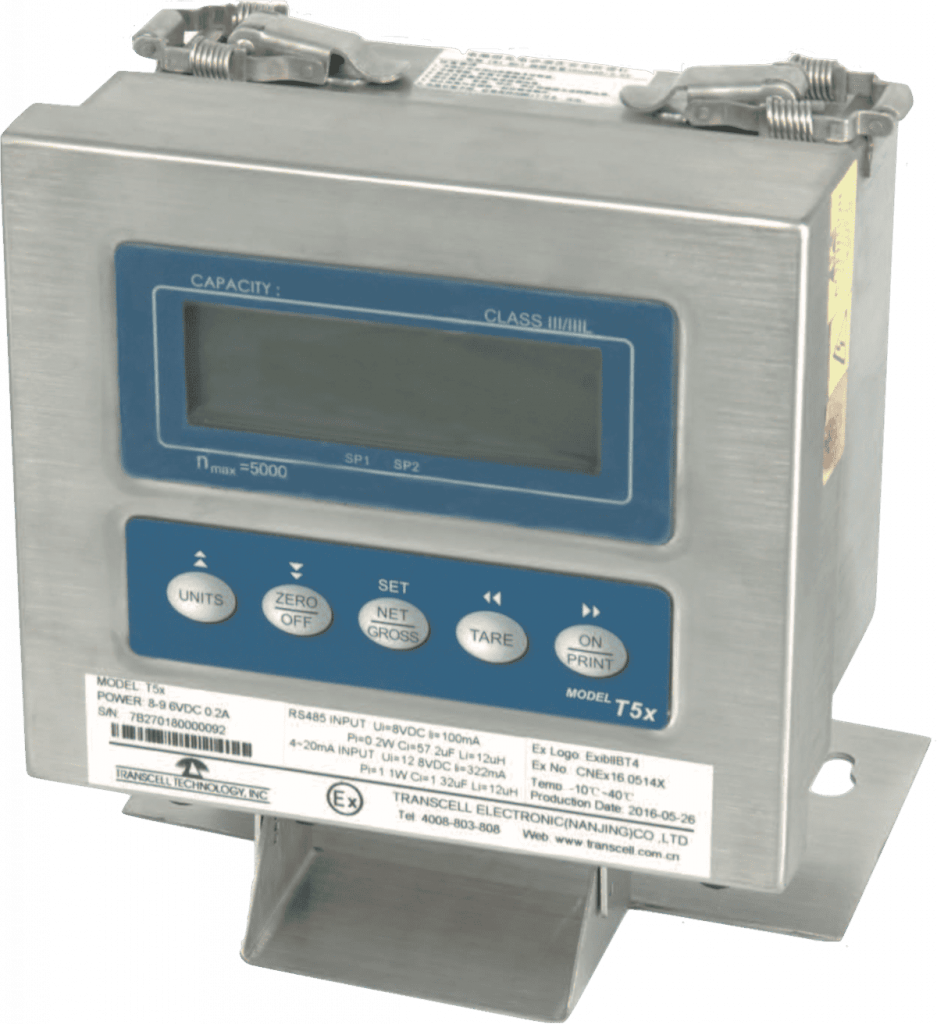

T5x-V17.3

T5x Explosion proof Weighing Indicator Dimensional
Specifications
Load Cell Excitation3.3 VDC
Power ConsumptionLess than 2w
Load Cell CurrentDrives Up to Eight 350 Ω Load Cells
Speed of Data Acquisition (AD01)10Hz and 80Hz
Battery Power Supply Input9.6V , and7.2V Battery Module
Systems of LinearLess than 0.02% F.S
Minimum Input Sensitivity0.3μV/grad
Precision as DisplayedMaximum 6
Input CurrentMaximum Input Current 140ma
Input Impedance30MΩ, Typical
Working Temperature-10 ~ 40°c
Zero Adjustment Range0.02 – 8mV (recommend using 0.2 – 8mV)
Overall Dimensions178×201×160mm
Full Scale Input Range±3.125mV/V
Technical Data Sheet
A sign - flammable

Safe IndicatorsSafe Indicators

We Combine Safety and Accuracy in Hazardous Locations

Numerous industries rely on our intrinsically safe indicators where flammable vapors, chemicals, dust, fibers, and filings create risk of explosion. We can configure indicators with wireless or wired communication from your measuring equipment.

Common Industries

  • Agriculture
  • Automotive
  • Manufacturing
  • Chemical manufacturing and distribution
  • Oil and gas
  • Food and Beverage
  • Pharmaceutical
  • Paints, coatings, and inks

Engineering DesignEngineering Design

Precision Engineering and Manufacturing from the Ground Up

Transcell ensures the success of unique construction projects with vertical integration that adapts products to your architectural plans, environmental conditions, and other construction variables. Our in-house engineering and manufacturing deliver higher quality solutions faster.
