    Pressure Transducers

    Transcell pressure transducers feature a high strength stainless steel construction, wide operating temperature range, and compatible with liquids and gases. Suitable for a variety of industry such as automobile, agriculture, manufacture.

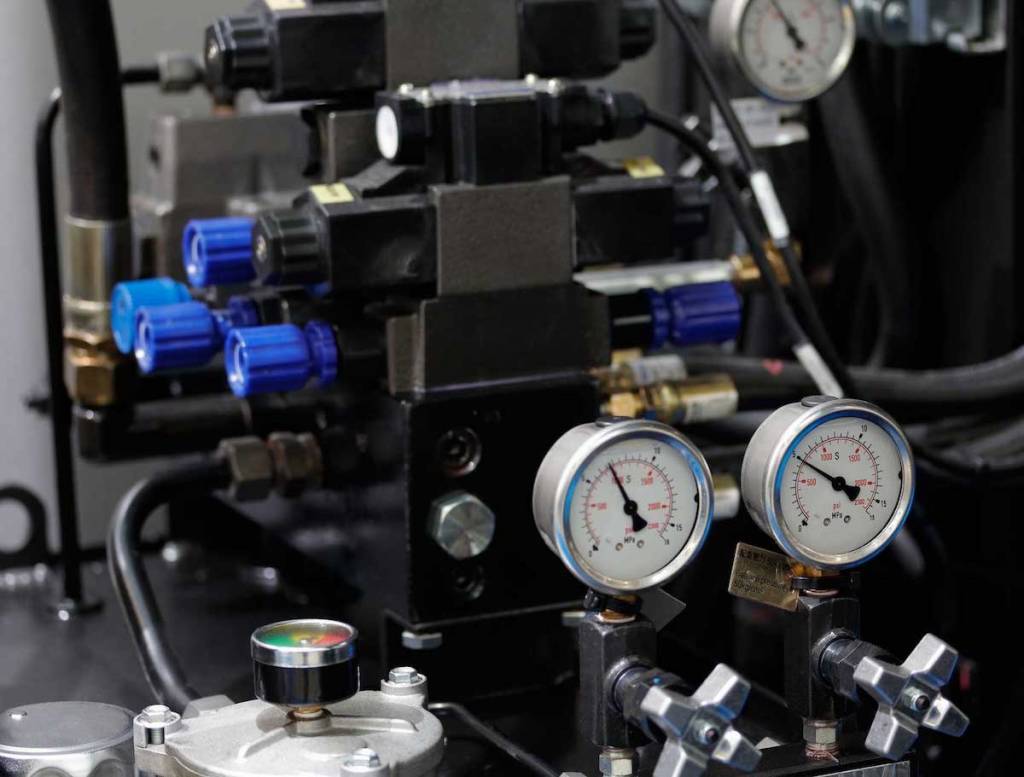

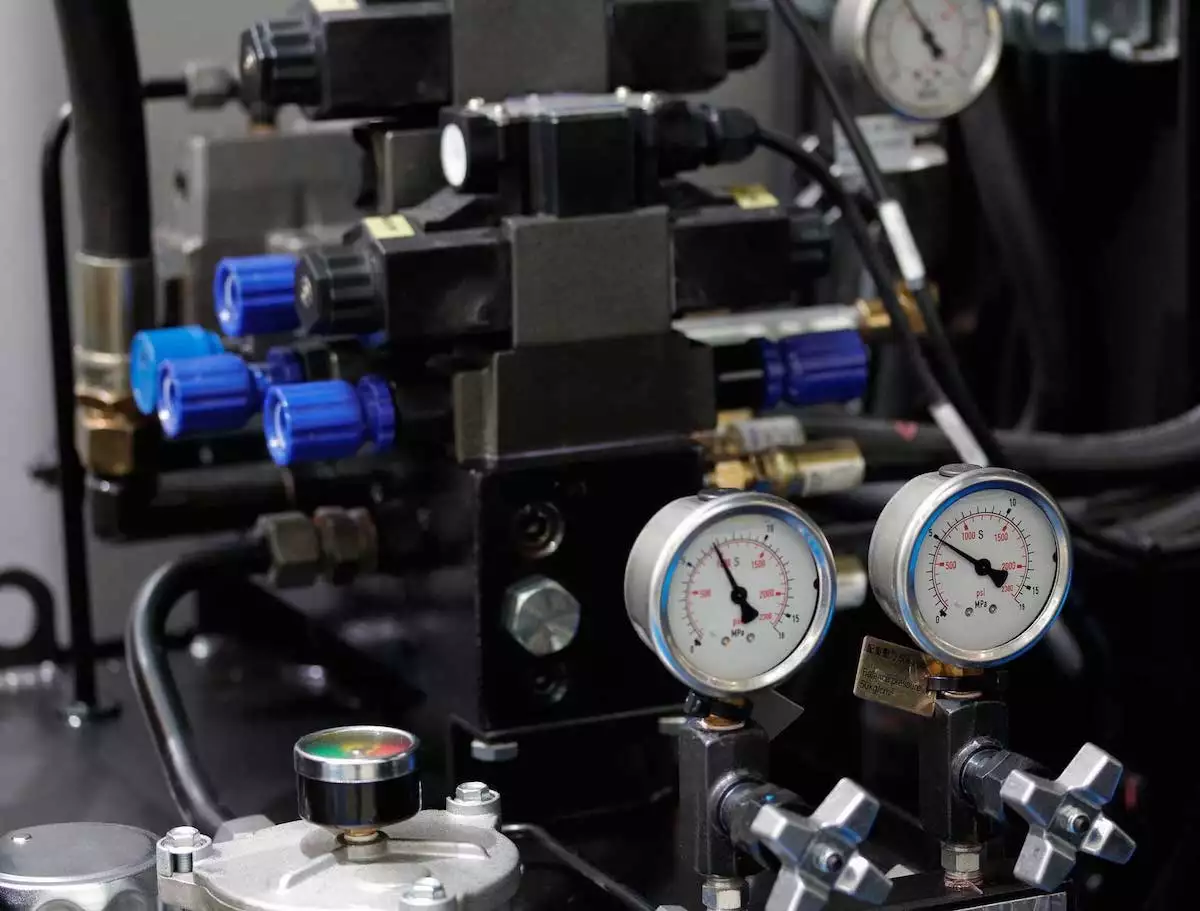

    Oilpress

    Features:

    • Capacity: 500 bar
    • Special Load Cell
    • Senior Alloy Steel
    • Easy to Install
    • Stabile and Reliable
    Specification:
    Rated Output: 2.0mV/V ±10%
    Zero Balance: ± 9% of rated output
    Creep after 30 minutes: ±0.2% of rated output
    Nonlinearity: ±0.2% of rated output
    Hysteresis: ±0.2% of rated output
    Repeatability: ±0.2% of rated output
    Temp. effect on output: ≤0.01% of applied output/ºC
    Temp. effect on zero: ≤0.02% of rated output/ºC
    Safe Temp. Range: -10ºC to +70ºC
    Temp. Compensated: -10ºC to + 50ºC
    Safe Overload: 1.5
    Input Impedance: 1100 ohm ± 200 ohm
    Output Impedance: 1000 ohm ± 100 ohm
    Insulation Resistance: ≥5000 M ohm  (50V DC)
    Rated Excitation: 10V DC/AC
    Maximum Excitation: 15V DC/AC
    Cable Length: 400cm
    Cable Color Code: Red(+E) Black(-E) Green(+S) White(-S)

    TPT16 and TPT18

    • High strength stainless steel construction
    • No oil, welds or internal O-rings
    • Wide operating temperature range
    • Low static and thermal errors
    • Compatible with wide range of liquids d and gases
    • Applicable to the field of impact resistance and shock resistance
    • Suitable for industrial OEM equipment, hydraulic systems, automobile industry, refrigeration equipment, data loggers and agricultural equipment and so on
    Item Description Capacity
    TPT16 100PSI

    500PSI

    800PSI

    TPT18 100PSI

    500PSI

    800PSI

    1500PSI

    Specification:
    Input voltage: 5-10VDC
    Output: 5-20mv/10v(TPT16 series) 5-30mv/10v(TPT18 series)
    Over pressure: ≤ 1.5 rated pressure
    Burst pressure: ≥ 1.8 rated pressure
    Input/output resistance: 2.3 – 2.8KΩ
    Zero offset: ≤±3%FS
    Span tolerance: ≤±3%FS
    Operating temperature range: ­4°F – 185°F, ­20C° – 85°C
    Compatibility temperature range: 30°F – 122°F, ­0C° – 50°C
    Fluid compatibility: Any gas or liquid compatible with 17 – 4PH stainless steel
    Accuracy: ≤1%FS (at room temperature, include nonlinearity, hystersis and repeatability)
    Cable color code: Red (+E) Black (-E) Green (+S) White (-S)
