Technical Specifications

View All Model Details

TI 500 V17.3

TI 500E V17.3

TI 500E PLUS

TI 500ESS V17.3

TI 500SL V17.3

TI 500RF

TI 500RF-SS

TI 700K

TI 1500 V17.3

TI 1500B

TI 1520 V17.3

TI 1680 V17.3

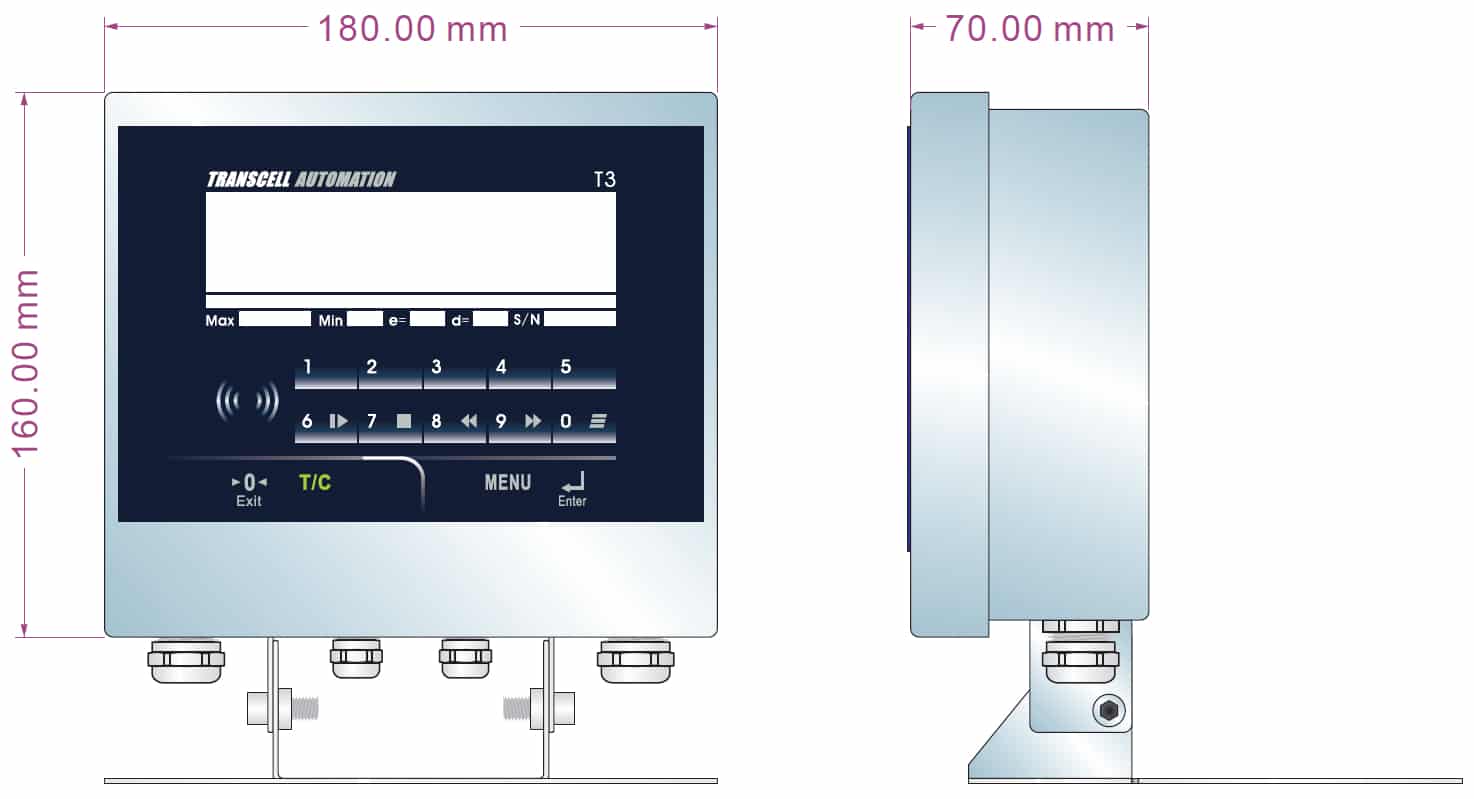

T3 V17.3

T6 V17.3

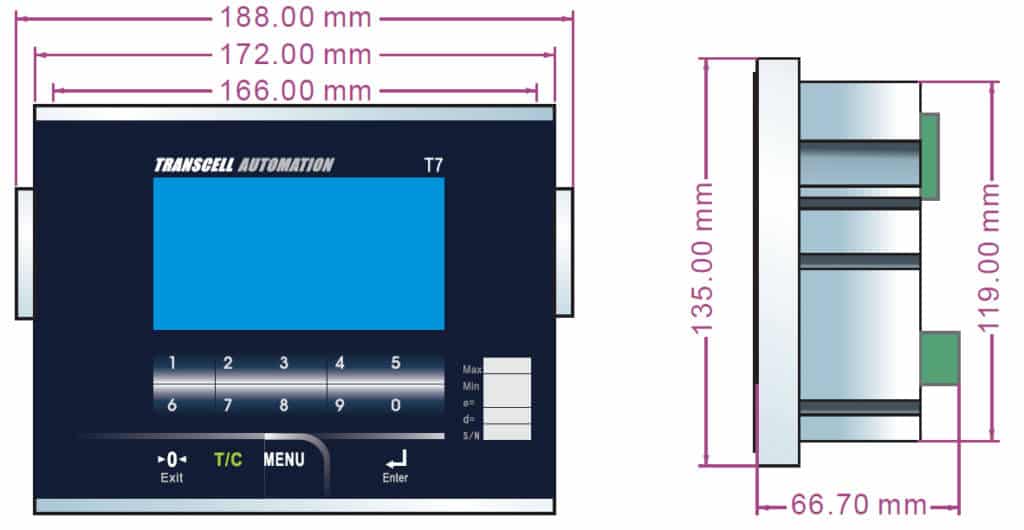

T7 V17.3

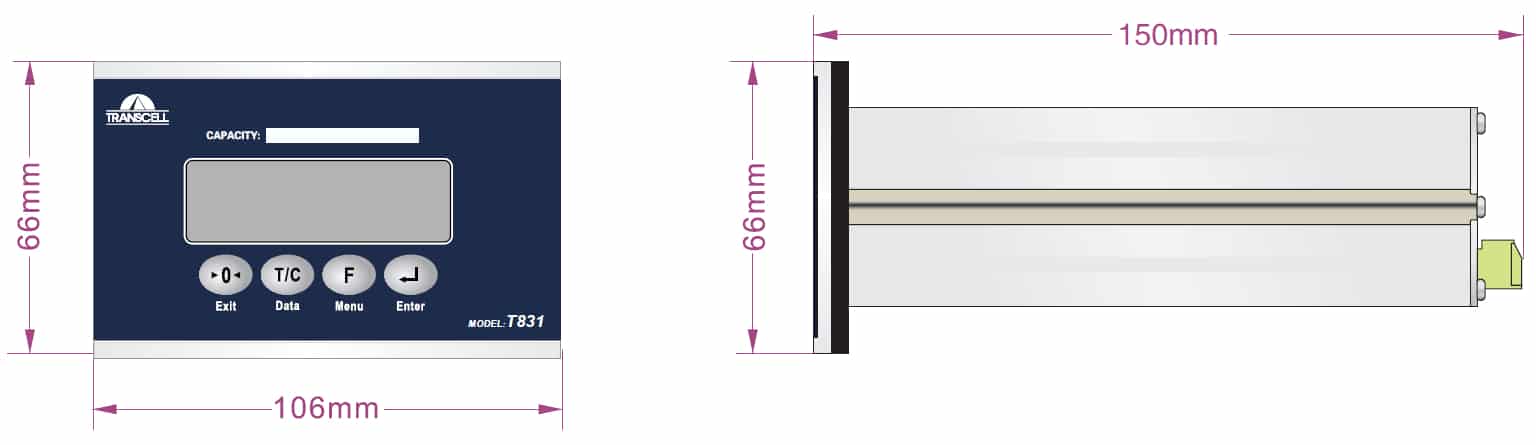

T831 V17.10

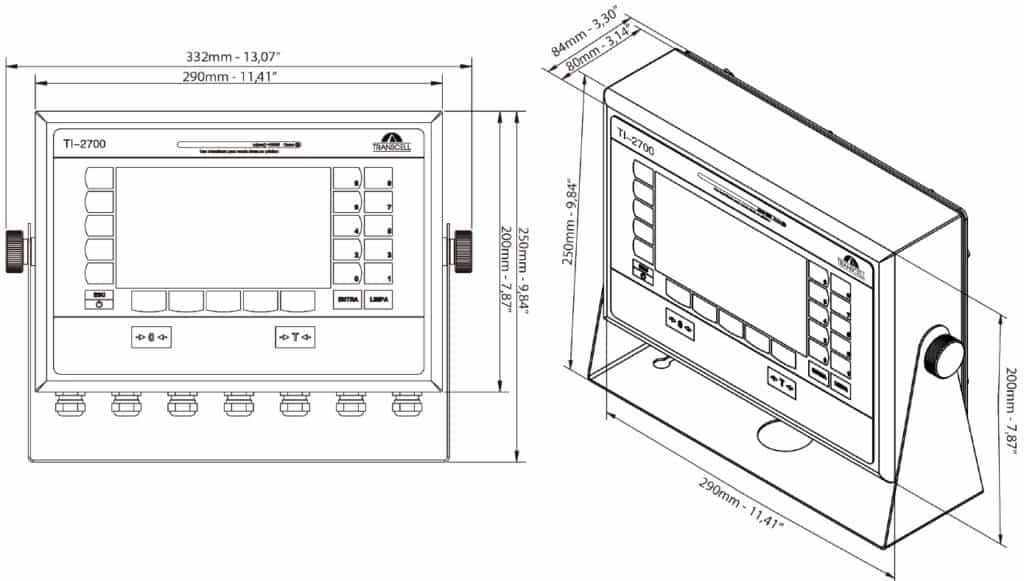

TI 2700 V17.7

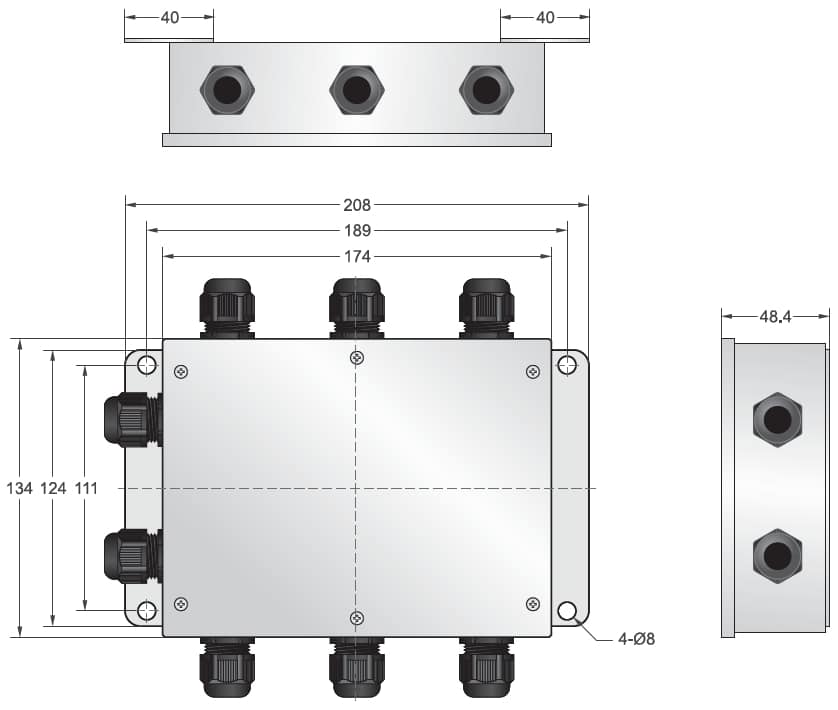

TI 1500VC Transmitter V18.6

LCT 2 Digital Transmitter

TI 500K

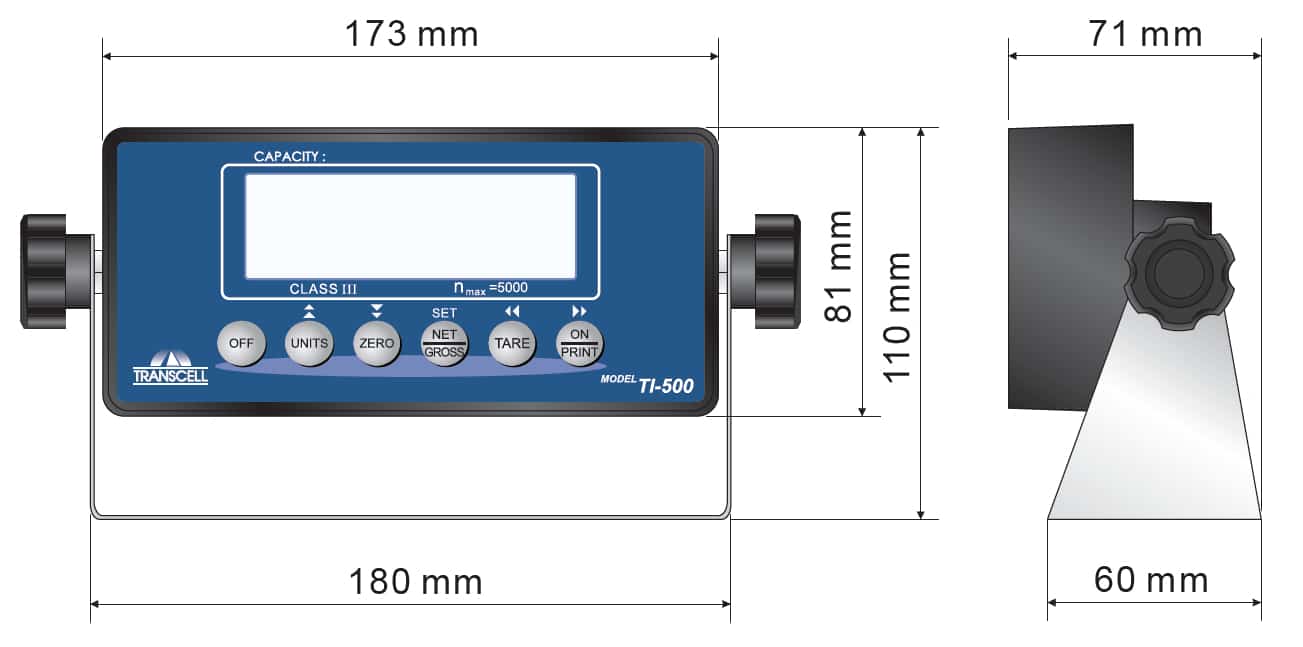

TI-500-V17.3

Specifications
Load Cell Excitation	+3.3 VDC
Keyboard Functions	Off, Units, Zero, Net/Gross, Tare, On/Print
Load Cell Current	Drives up to four (4) 350 ? load cells
Serial Port	Full Duplex RS-232C
Analog Signal Input Range	+/- 3.125 mV/V (max.)
Power	5.9 VDC, 600 mA switching wall adaptor
Sensitivity	0.2?V/grad, minimum, 0.4?V/grad, min value recommended for legal trade
Battery	AA alkaline batteries (1.5V) or AA rechargeable batteries (1.2V)
DC Power Consumption	10 mA + 9 mA/350 ? load cell
A/D Conversion Rate	10 Hz
A/D Resolution	Up to 260,000 internal counts at 2 mV/V
Indicator Dimensions	3.2x 6.8x 2.3(81mm x 173mm x 60mm)
Display	0.9, 6 Digit LCD with LED backlight
NIST Classification	H-44 Class III at 5,000 Divisions, NTEP CC 94-080A3
Display Resolution	AM-5800C
Annunciators	Tare, Gross, lb, kg, Stable, Net, PCS, Negative, Low battery, Center of Zero
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Warranty	1 year limited warranty applies

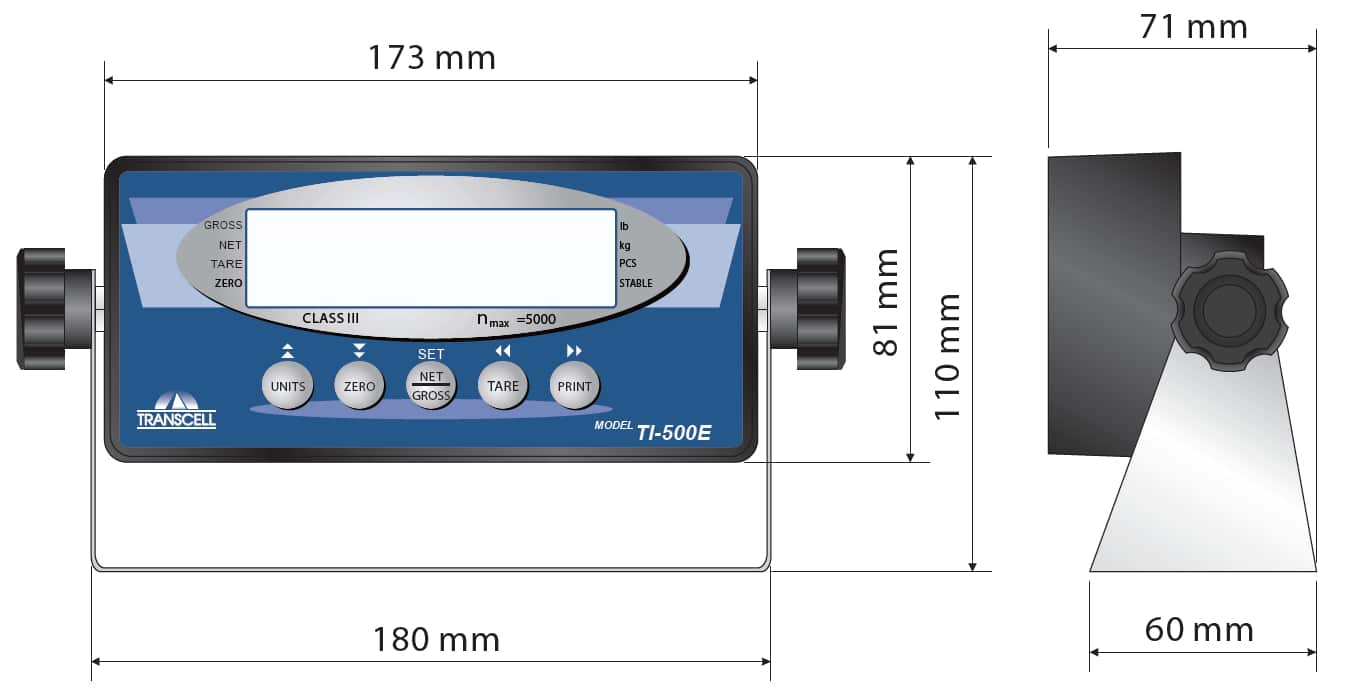

TI-500E-V17.3

Specifications
Load Cell Excitation	+5 VDC
Annunciators	Zero, Tare, Gross, lb, kg, Stable, Net, PCS, Negative
Load Cell Current	Drives up to four (4) 350 ? load cells
Keyboard Functions	Units, Zero, Net/Gross, Tare, Print
Analog Signal Input Range	+/- 3.125 mV/V (max.)
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
Serial Port	Full Duplex RS-232C
DC Power Consumption	200 mA + 15 mA/350 ? load cell
A/D Conversion Rate	10 Hz
Indicator Dimensions	3.2x 6.8x 2.3(81mm x 173mm x 60mm)
A/D Resolution	Up to 200,000 internal counts at 3 mV/V
NIST Classification	H-44 Class III at 5,000 Divisions, NTEP CC 94-080A3
Display	0.6, 6 Digit LED, Green
Canadian Approval No.	AM-5800C
Display Resolution	Up to 50,000 external grads
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Warranty	1 year limited warranty applies

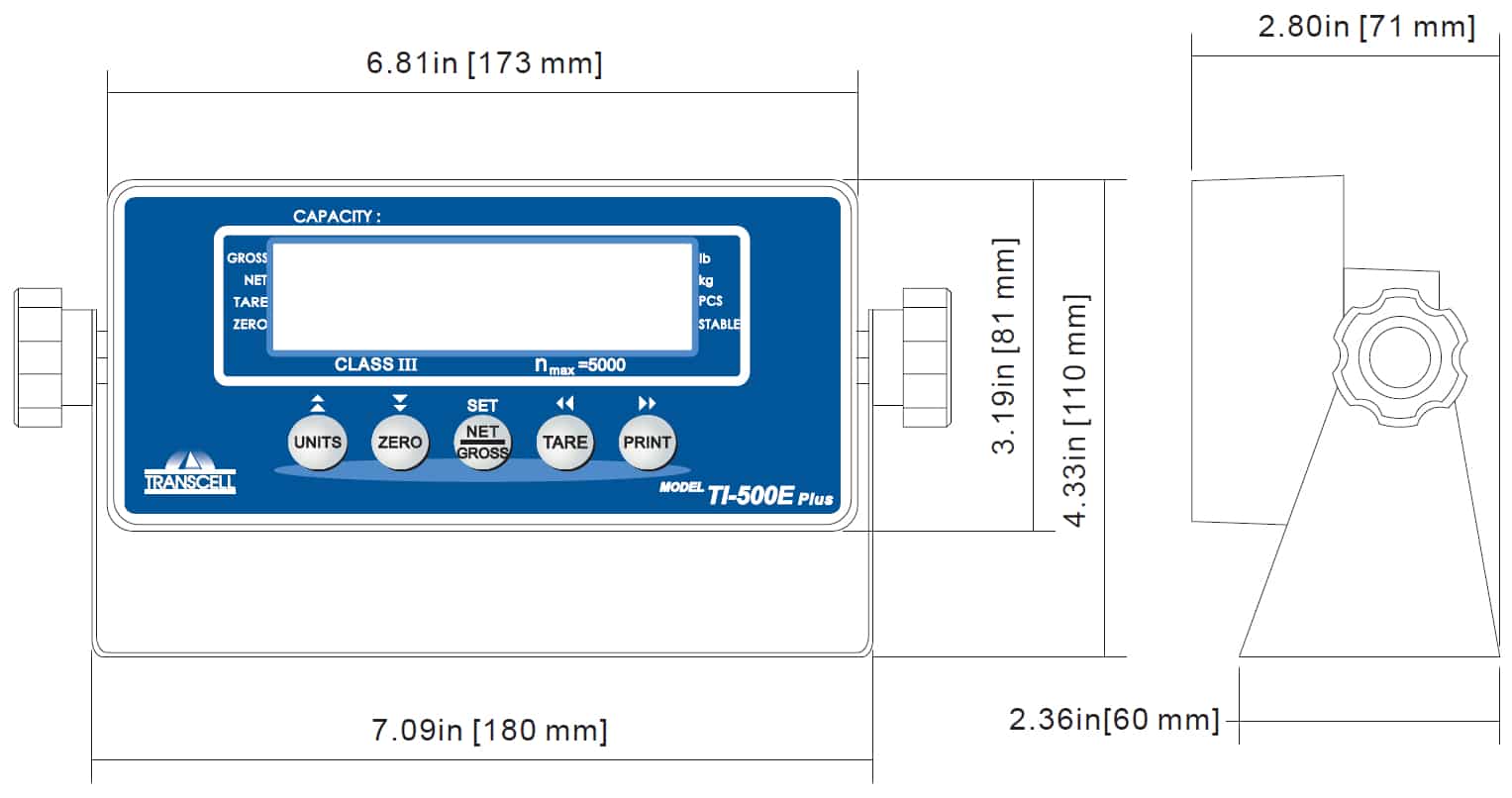

TI-500E-PLUS

Specifications
Load Cell Excitation	+5 VDC
Keyboard Functions	Units, Zero, Net/Gross, Tare, Print
Load Cell Current	Drives up to four 350 ? Load Cells
Annunciators	Gross, Net. kg, lb, Center of Zero, Stable, Tare, Negative, PCS
Analog Sensitivity	0.3 ?V/grad, minimum 0.6 ?V/grad, recommended minimum for Legal-for-Trade
Power Requirement	9 VDC, 500 mA Wall Adapter Included
A/D Conversion Rate	10 HZ / 80 HZ Selectable
DC Power Consumption	200 mA + 15 mA/350 ohm Load Cell
A/D Conversion Rate	10 Hz
A/D Resolution	Up to 260,000 Internal Counts @ 2 mV/V
Display	0.6, 6 Digit LED Display
Display Resolution	Up to 50,000 external grads
Indicator Dimensions	AM-5800C (81mm x 173mm x 60mm)
NIST Classification	H-44 Class III at 5,000 Divisions C.O.C. #94-080A2
Operating Temperature	14ºF to 104ºF (-10ºC to 40ºC)
Warranty	1 Year

TI-500ESS-V17.3

Specifications
Load Cell Excitation	+5 VDC
Annunciators	Zero, Tare, Gross, lb, kg, Stable, Net, PCS, Negative
Load Cell Current	Drives up to four (4) 350 ? load cells
Keyboard Functions	Units, Zero, Net/Gross, Tare, Print
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
DC Power Consumption	200 mA + 15 mA/350 ? load cell
A/D Conversion Rate	10 HZ / 80 HZ Selectable
Indicator Dimensions	9.0x 5.5x 2.9(231mm x 140mm x 72mm)
A/D Conversion Rate	10 Hz
A/D Resolution	Up to 260,000 Internal Counts @ 2 mV/V
NIST Classification	H-44 Class III at 5,000 Divisions, NTEP CC 94-080A3
Canadian Approval No.	AM-5800C
Display	0.6, 6 Digit LED, Green
Display Resolution	Up to 50,000 external grads
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Warranty	1 year limited warranty applies

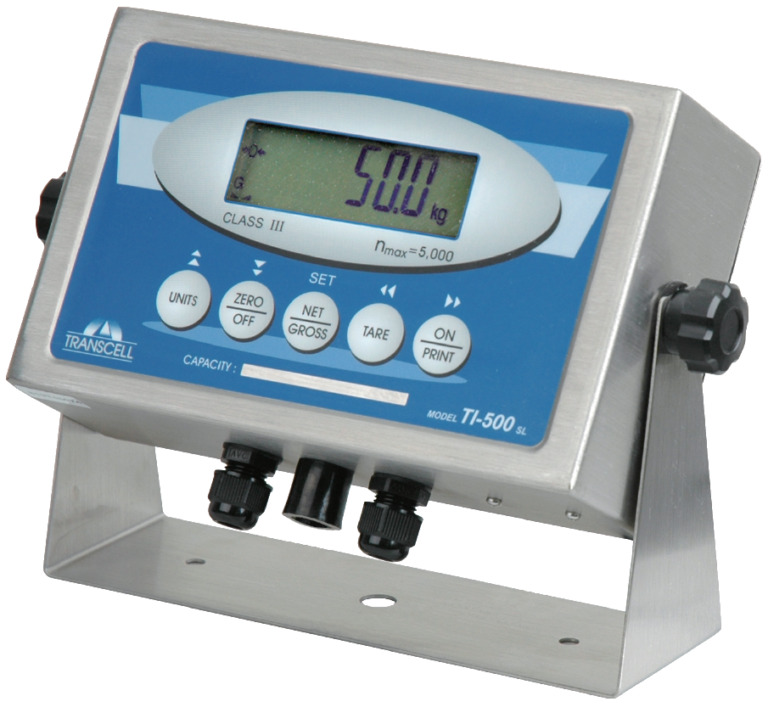

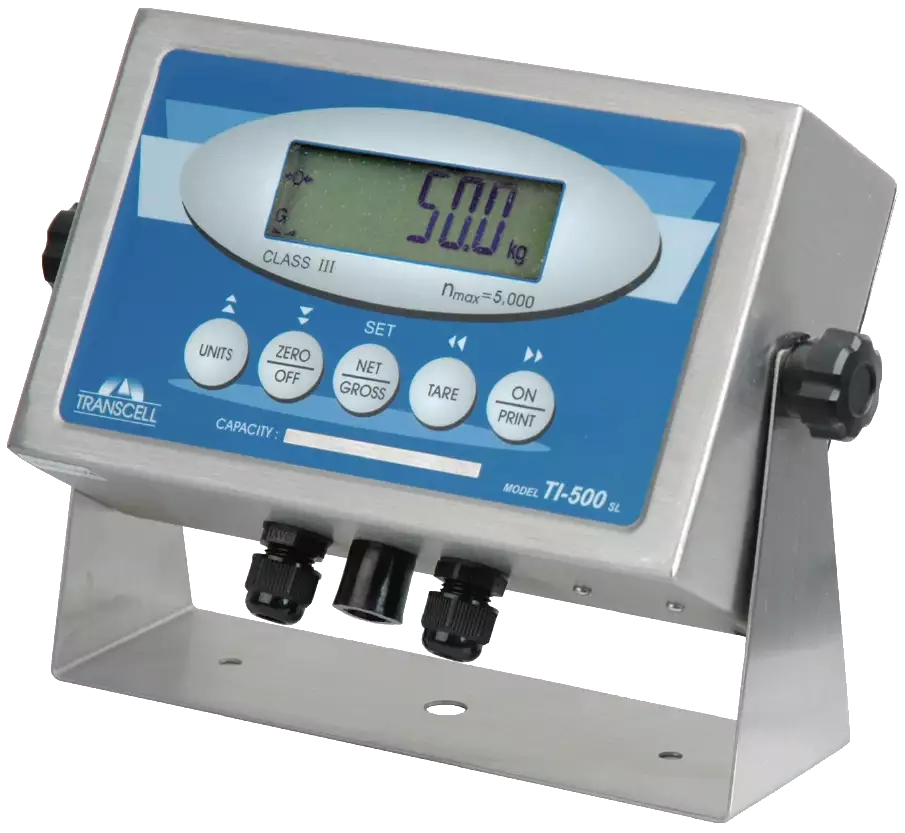

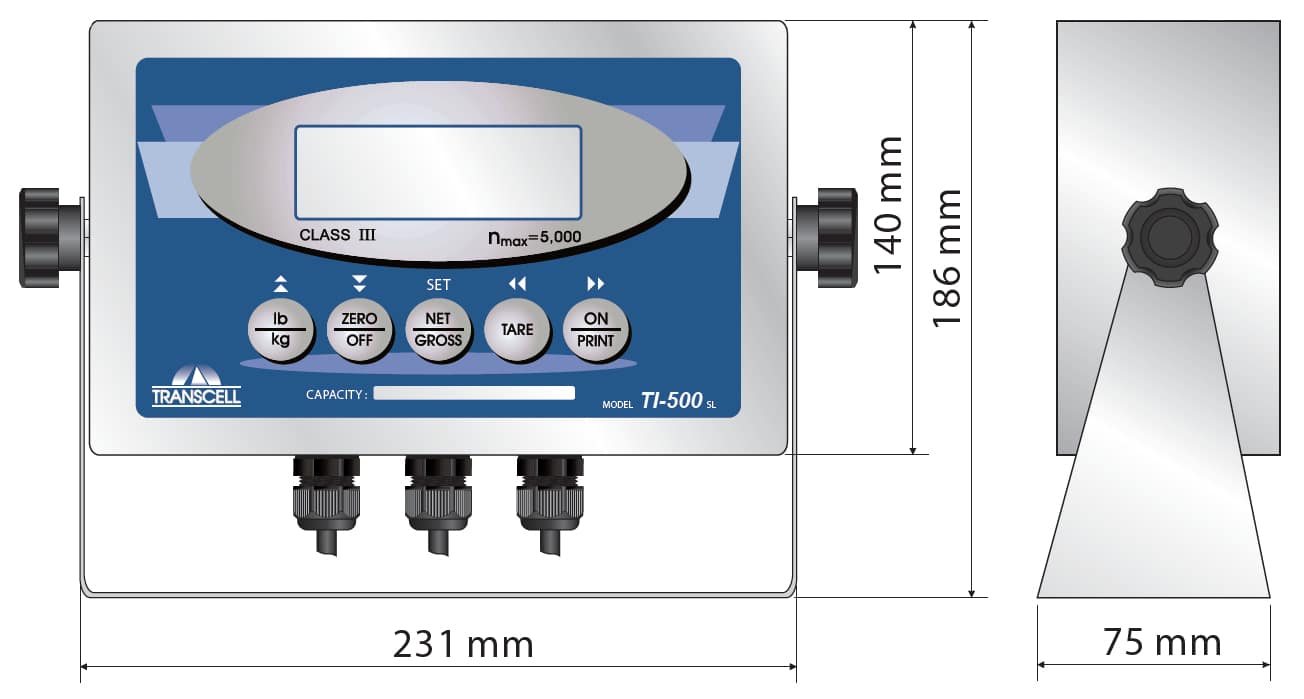

TI-500SL-V17.3

Specifications
Load Cell Excitation	+4.7 VDC
Annunciators	Gross, Net, kg, lb, Center of Zero, Stable, Tare, Negative
Load Cell Current	Drives up to four (4) 350 ? load cells
Keyboard Functions	Units, Zero/Off, Net/Gross, Tare, On/Print
Analog Signal Input Range	+/- 3.125 mV/V (max.)
Power	12VDC, 1000 mA wall adaptor/charger
DC Power Consumption	50 mA + 13 mA/350 ? load cell
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
A/D Conversion Rate	10 Hz / 80 Hz (selectable)
A/D Resolution	Up to 280,000 internal counts at 2 mV/V
Battery	6-Volt 3Ah Internal Rechargeable Lead Acid
Charging Time	44 hours (fully discharged battery)
Display	0.9, 6 Digit LCD with LED backlight
Display Resolution	Up to 50,000 external grads
Indicator Dimensions	8.9x 5.5x 2.9(231mm x 140mm x 72mm)
NIST Classification	H-44 Class III at 5,000 Divisions, NTEP CC 94-080A3
Canadian Approval No.	AM-5800C
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Warranty	1 year limited warranty applies

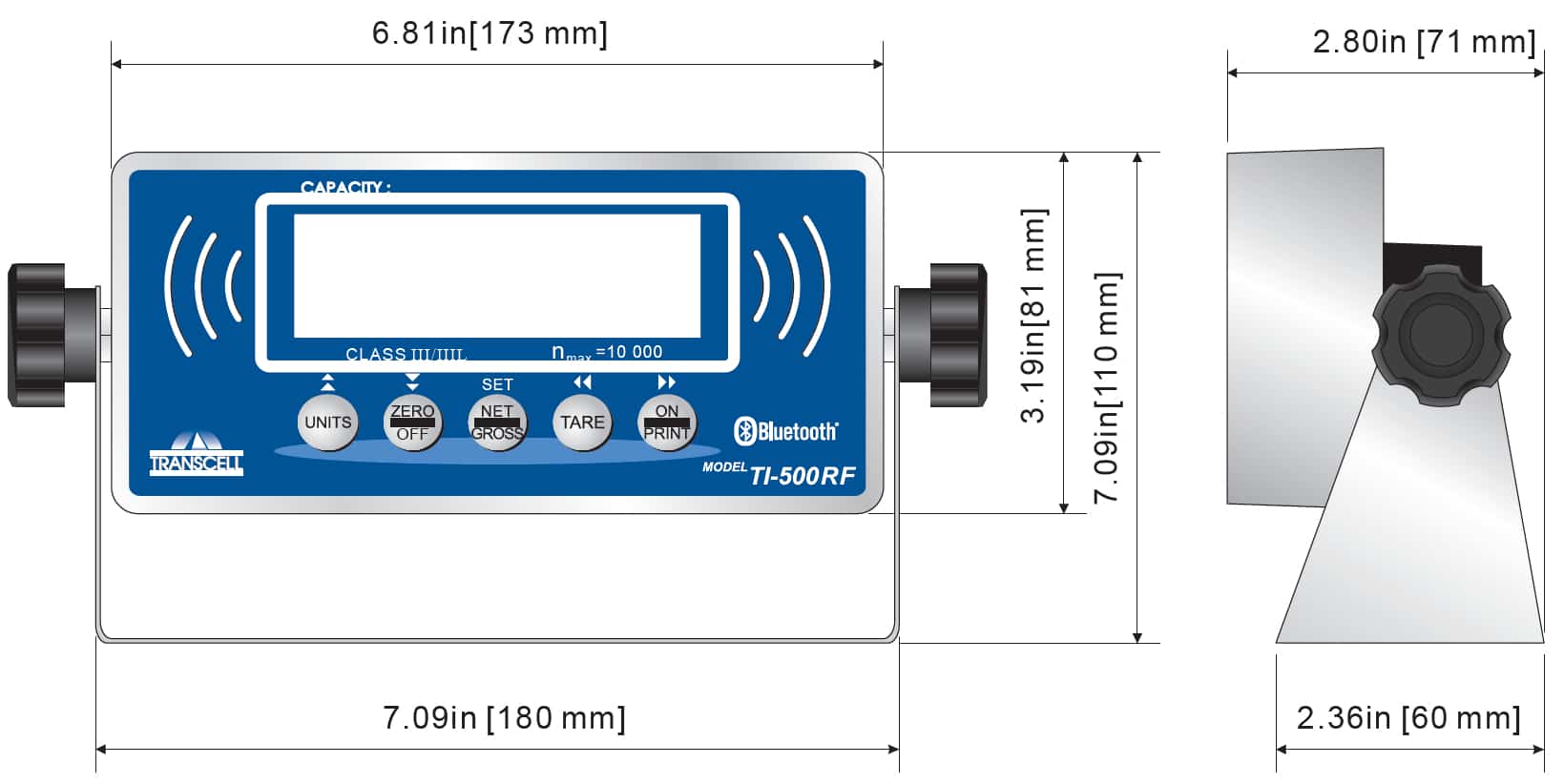

TI-500RF

Specifications
Load Cell Excitation	+3.3 VDC
Keyboard Functions	Units, Zero/Off, Net/Gross, Tare, On/Print
Load Cell Current	Drives up to eight 350 ? Load Cells
Analog Signal Input Range	+/- 3 mV/V max
Analog Sensitivity	0.3 ?V/grad, minimum 0.6 ?/grad, recommended minimum for Legal-for-Trade
Annunciators	Gross, Net, kg, lb, Center of Zero, Stable, Tare, Negative, low battery
Serial Port	Full Duplex RS-232C, optional bluetooth
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
A/D Conversion Rate	10 Hz / 80 Hz (selectable)
Power Requirement	4-14 VDC
DC Power Consumption	50mA + 10 mA/350 ? Load Cell
A/D Resolution	Up to 200,000 Internal Counts @ 3 mV/V
Display	0.8, 6 Digit LCD w/LED backlight
Display Resolution	Up to 50,000 external grads
Indicator Dimensions	3.2 x 6.8 x 2.3 (81mm x 173mm x 60mm)
NTEP CC	12-002
Enclosure	Aluminum / ABS
Operating Temperature	14ºF to 104ºF (-10ºC to 40ºC)
Warranty	1 year limited warranty applies
Measurement Canada	Pending

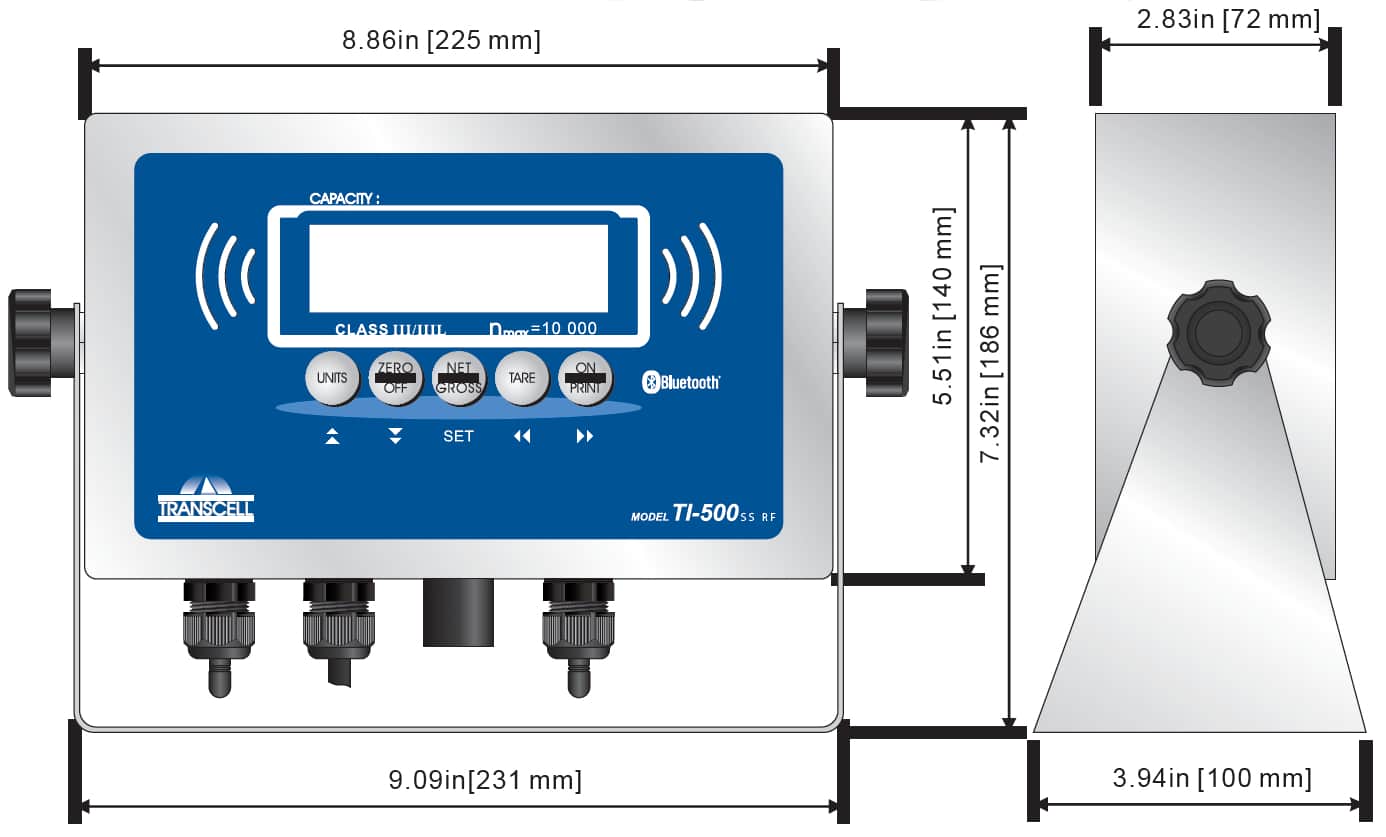

TI-500RF-SS

Specifications
Load Cell Excitation	+3.3 VDC
Keyboard Functions	Units, Zero/Off, Net/Gross, Tare, On/Print
Load Cell Current	Drives up to eight 350 ? Load Cells
Analog Signal Input Range	+/- 3 mV/V max
Analog Sensitivity	0.3 ?V/grad, minimum 0.6 ?/grad, recommended minimum for Legal-for-Trade
Annunciators	Gross, Net, kg, lb, Center of Zero, Stable, Tare, Negative, low battery
Serial Port	Full Duplex RS-232C, optional bluetooth
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
A/D Conversion Rate	10 Hz / 80 Hz (selectable)
Power Requirement	4-14 VDC
DC Power Consumption	50mA + 10 mA/350 ? Load Cell
A/D Resolution	Up to 200,000 Internal Counts @ 3 mV/V
Display	0.8, 6 Digit LCD w/LED backlight
Display Resolution	Up to 50,000 external grads
Indicator Dimensions	3.2 x 6.8 x 2.3 (81mm x 173mm x 60mm)
NTEP CC	12-002
Enclosure	Aluminum / ABS
Operating Temperature	14ºF to 104ºF (-10ºC to 40ºC)
Warranty	1 year limited warranty applies
Measurement Canada	Pending

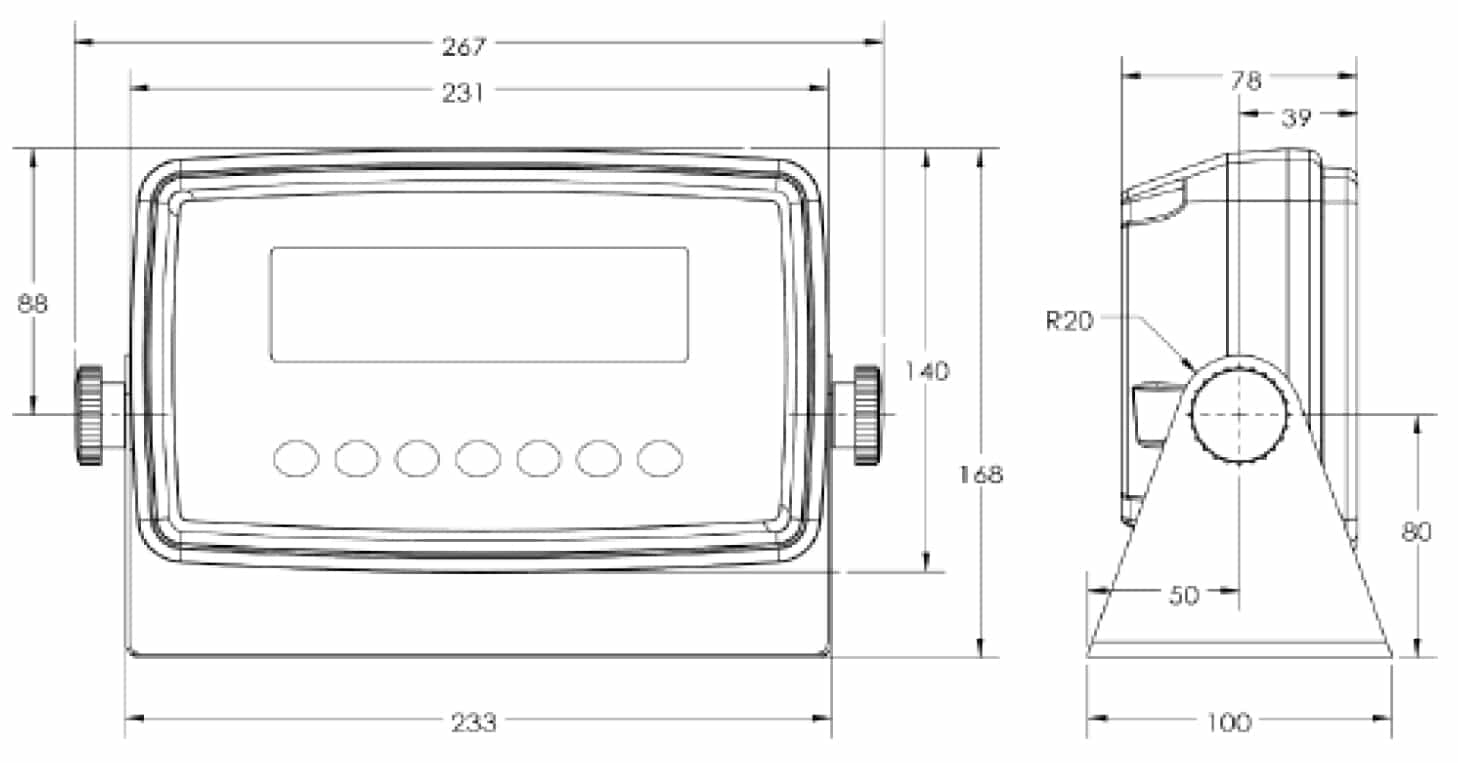

TI-700K V19.7

Specifications
Load Cell Excitation	+3.3 VDC
Operating Temperature	-4°F to 104°F (-20? to 40?)
Load Cell Current	Drives up to eight 350 ? Load Cells
A/D Resolution	Up to 260,000 internal counts at 2 mV/V
Analog Signal Input Range	+/- 3.125 mV/V max
Annunciators	Gross, Net, Tare, Center of Zero, lb, kg, pcs, Stable
A/D Conversion Rate	10 Hz to 960Hz, selectable
Key Functions	Menu/off,Units,Zero,Net/gress,Tare,Print,On
Current Consumption	30mA + 15mA per 350-ohm load cell
Serial Output	Full duplex RS-232
Display Resolution	Up to 100,000 external grads, selectable
Power (Standard)	100-240 VAC, 50/60 Hz
Canadian Weights & Measures	General Class III at 10,000 divisions. AM-6038C
Power (Optional)	5 to 15 VDC
NIST Classification	H-44 Class III/IIIL at 10,000 divisions
NTEP CC	16-086
Display	1.0, 7-Digit LCD
Warranty	0 year limited warranty applies

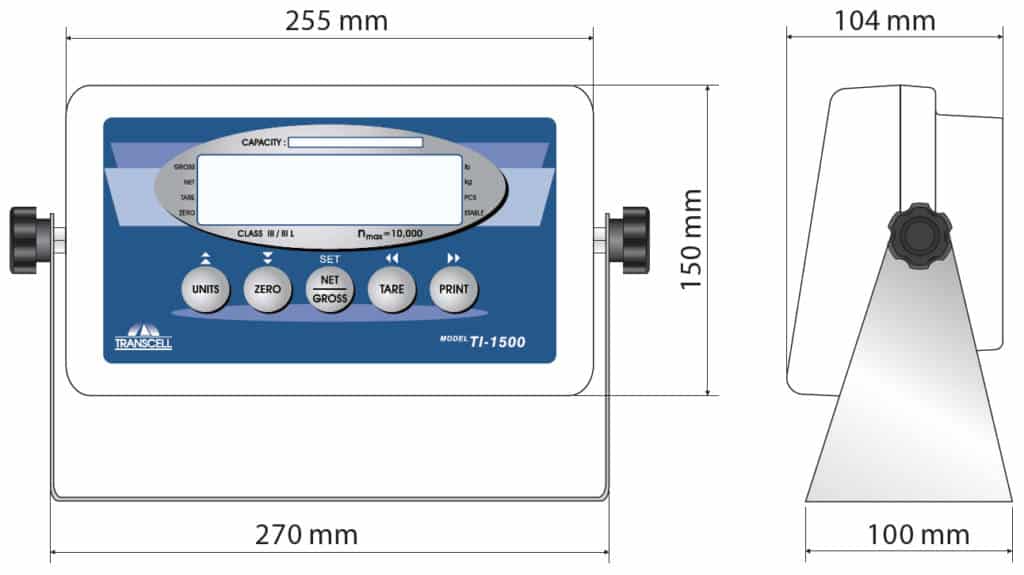

TI-1500-V17.3

Specifications
Load Cell Excitation	+5 VDC
Load Cell Current	Drives up to four (4) 350 ? load cells
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
NIST Classification	H-44 Class III/IIIL at 10,000 Divisions, NTEP CC 99-017
Analog Signal Input Range	+/- 3.125 mV/V max
Annunciators	Zero, Tare, Gross, lb, kg, Net, Stable, Pieces
Power	100-240 VAC, 50/60 Hz
DC Power Consumption	200mA+15mA/350 ? load cell
A/D Conversion Rate	10 Hz / 80 Hz (selectable)
A/D Resolution	Up to 260,000 internal counts at 2 mV/V
Options	1. Analog Output: 16-Bit, 0-5VDC (active), 4-20mA (passive) 2. Communication: Bluetooth, RS-485, WLAN
Canadian Measurements	General Class III at 10,000 divisions, AM-5305R1
Serial Port	Full Duplex RS-232C
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Keypad functions	Zero, Net/Gross, Tare, Units, Print
Warranty	1 year limited warranty applies
Display	1, 6-Digit LED, green
Display Resolution	Up to 50,000 external grads

TI-1500B Operation Manual

Specifications
Full Scale Input Signal	30mV, including dead load
Input Impedance	30M?, typical
Minimum SensitivityNon H-44	0.4?V/ grad
Minimum SensitivityH-44	1.0?V/ grad
Calibration Method	Software Calibration, with long term storage in EEPROM
Excitation Voltage	+5VDC
Power	AC110V AC230V
Operation Temperature	10? -- + 40?
Storage Temperature	- 25? -- + 70?
Display	LED
Display Dimensions	1 (25mm), 6 Digit, 7-Segment, LED
Overall Dimensions	310mm x 100mm x 205mm
Keyboard	5 key flat membrane panel
Additional Symbols	Peak, Zero, N, kN, lbf, mV/V

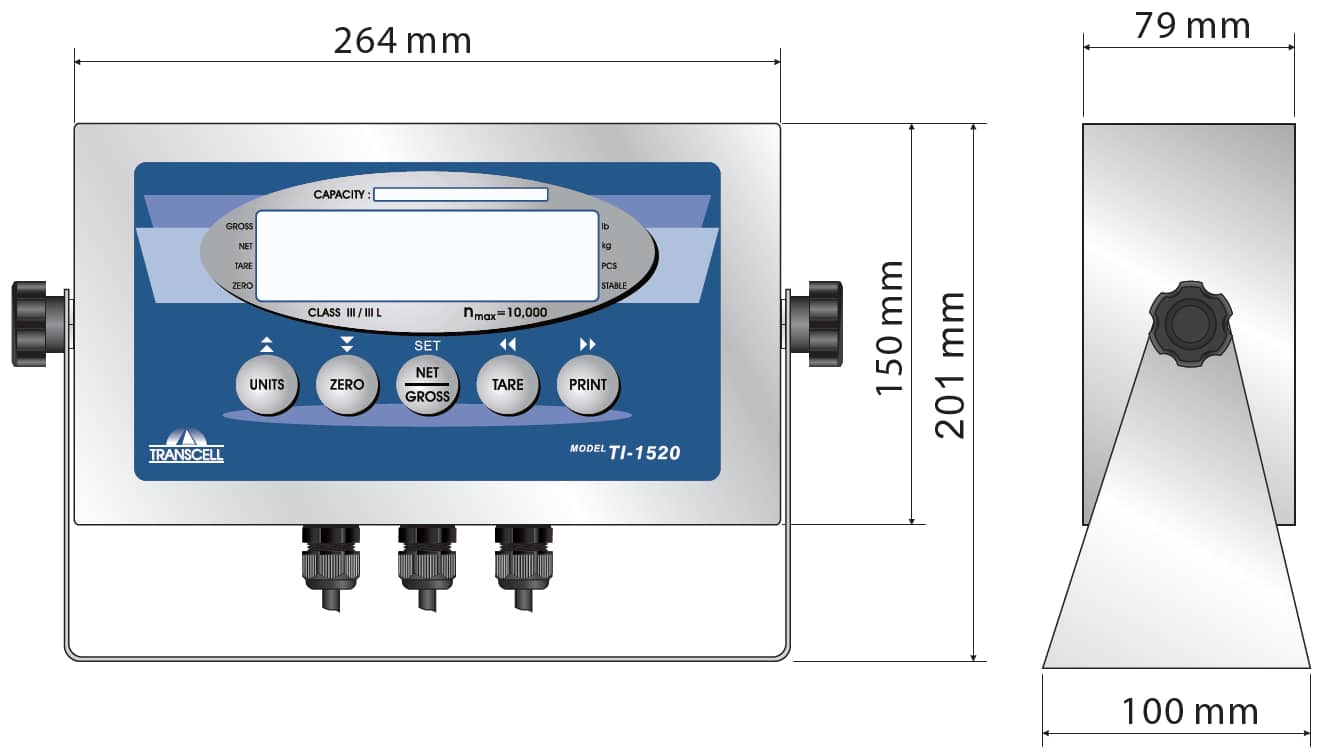

TI-1520-V17.3

Specifications
Load Cell Excitation	+5 VDC
Load Cell Current	Drives up to four (4) 350 ? load cells
NIST Classification	H-44 Class III/IIIL at 10,000 Divisions, NTEP CC 99-017
Canadian Measurements	General Class III at 10,000 divisions, AM-5305R1
Analog Signal Input Range	+/- 3.125 mV/V (max.)
Annunciators	Zero, Tare, Gross, lb, kg, Net, Stable, Pieces
Power	100-220 VAC, 50/60 Hz
DC Power Consumption	200mA+15mA/350?load cell
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
Options	1. Analog Output: 16-Bit, 0-5VDC (active), 4-20mA (passive) 2. Communication: Bluetooth, RS-485, WLAN
A/D Conversion Rate	10 Hz / 80 Hz (selectable)
A/D Resolution	Up to 260,000 internal counts at 2 mV/V
Serial Port	Full Duplex RS-232C
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Display	1, 6-Digit LED, green
Display Resolution	Up to 50,000 external grads
Keypad functions	Zero, Net/Gross, Tare, Units, Print
Warranty	1 year limited warranty applies

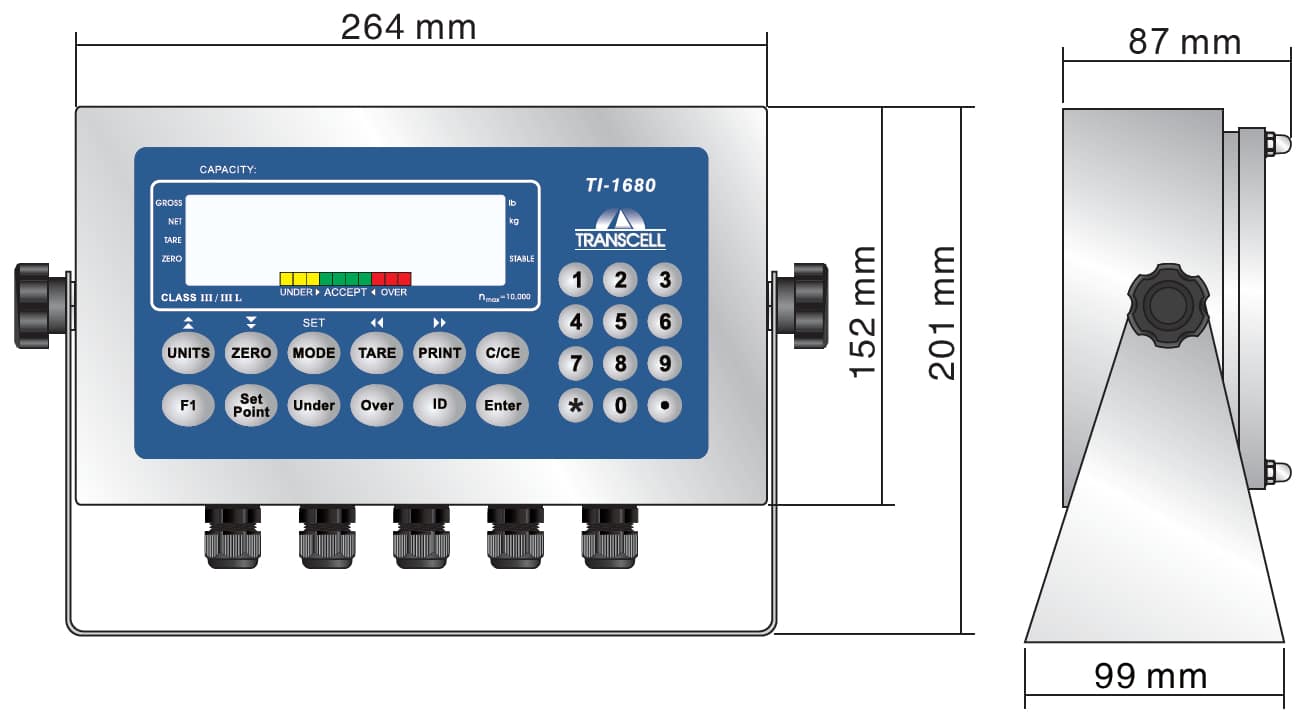

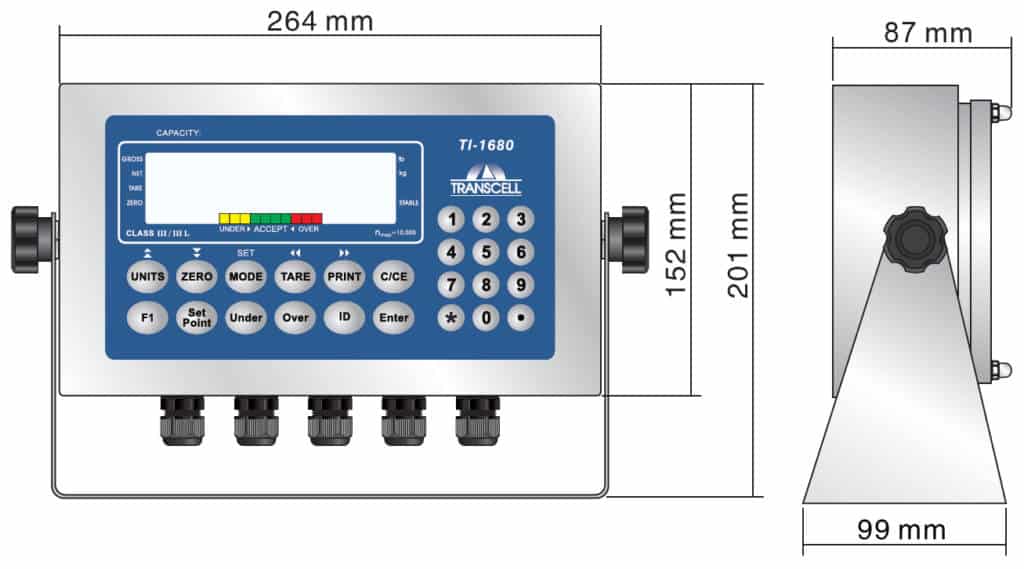

TI-1680-V17.3

Specifications
Load Cell Excitation	+5 VDC
Load Cell Current	Drives up to twelve (12) 350 ? load cells
Analog Signal Input Range	+/- 3.125 mV/V (max.)
A/D Resolution	Up to 260,000 internal counts at 2 mV/V
A/D Conversion Rate	10 Hz / 80 Hz (selectable)
Analog Signal Input Range	+/- 3.125 mV/V (max.)
Keypad functions	Units, Zero, Mode, Tare, Print, C/CE, F1, Set Point, Under, Over, ID, Enter, Dec.Pt, *, 0-9
Sensitivity	0.3?V/grad, minimum 0.6?V/grad, min value recommended for legal trade
Serial Port	Full Duplex RS-232C x 2
USB	2.0, full speed, peripheral
DC Power Consumption	200 mA + 15 mA/350 ? load cell
Display Resolution	Up to 50,000 external grads
NIST Classification	H-44 Class III/IIIL at 10,000 Divisions, NTEP CC 10-078
Canadian Weights and Measures	General Class III at 10,000 divisions, AM-5801
Power	100-240 VAC, 50/60 Hz or 12 VDC
DC Power Consumption	200 mA + 15 mA/350 ? load cell
Display	1, 6-Digit LED, green with tri-color LED bar graph
Display Resolution	Up to 50,000 external grads
Annunciators	Gross, Net, Tare, Zero, Under, Accept, Over, lb, kg, Stable, 01-04
Option	1. Analog Output: 16-Bit, 0-5VDC (active), 4-20mA (passive) 2. Communication: Bluetooth, RS-485, WLAN
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Warranty	1 year limited warranty applies

T3-V17.3

Specifications
Dimensions?WxHxD?	180x220x80(mm)
Filtering	Built-in six-order dynamic filtering algorithm
Housing	SS304 stainless steel
Excitation	+4.5 VDC
Display	LCD display with LED backlight
Protection Level	IP67
Installation	Wall mount, desk mount, column mount, arm support mount
Keypad	4 function keys and 10 numeric keys, easy to operate
Interface	Drives up to 4 350? load cells, or equivalent parallel resistance>87?
Serial Interfaces	RS-485 standard, RS-232 optional
Power	86VAC~264VAC,50~60HZ,300mA
Display Division	1,000~10,000
Operating Temperature	-10? to 45??10% to 90%RH,non-condensing
Sampling rate	10 to 80 Hz (selectable)
Storage Temperature	-10? to 45??10% to 90%RH,non-condensing

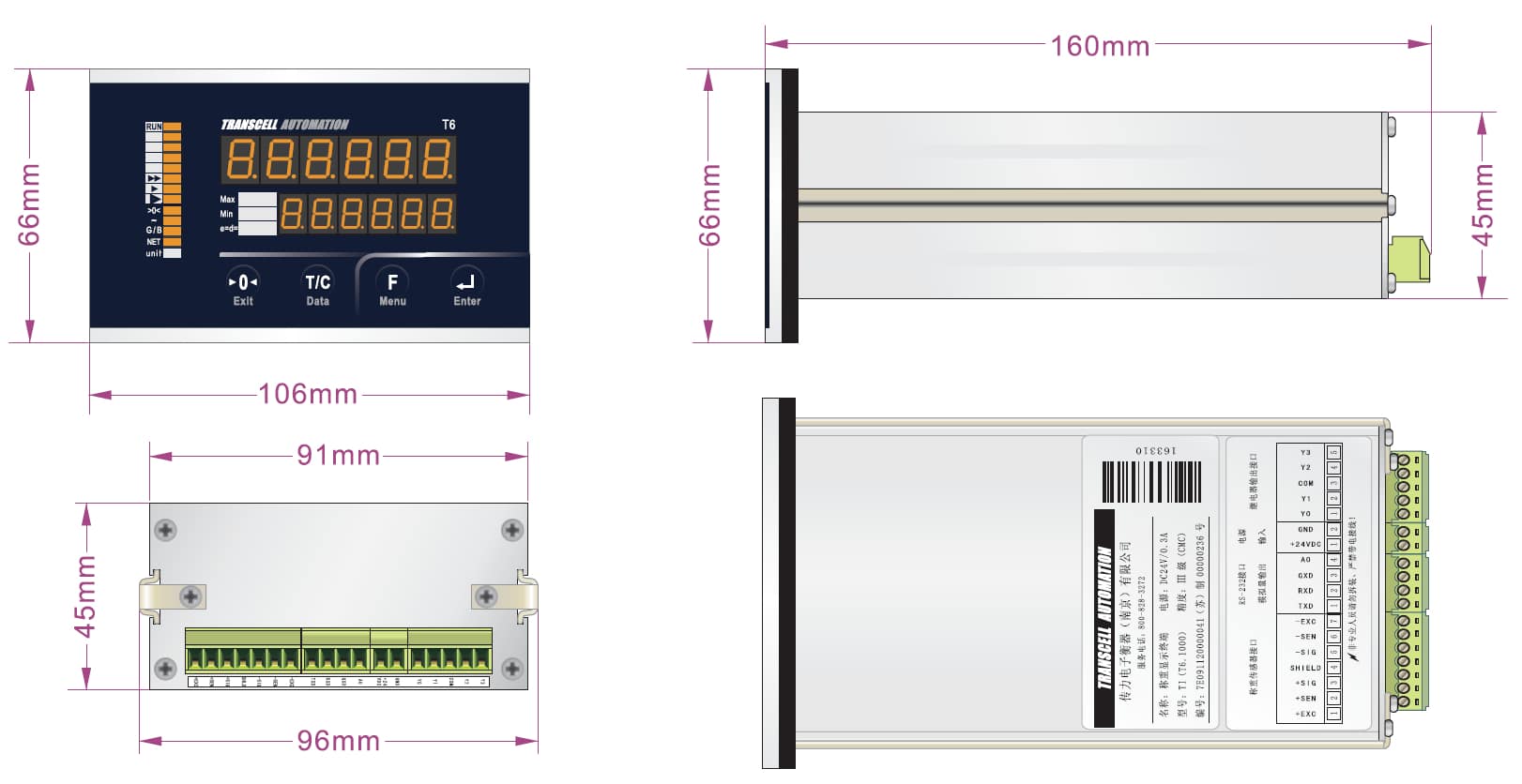

T6-V17.3

Specifications
Housing	Rear cover: SS304 stainless steel / Front housing: Aluminum Extrusion
Filtering	Built-in six-order dynamic filtering algorithm
Installation	Panel installation
Excitation	+4.5 VDC
Display	6-digit LED, yellow
Protection Level	IP67
Keypad	4 function keys
Display Division	1,000~10,000
Interface	Drives up to 4 350? load cells, or equivalent parallel resistance>87?
Serial Interfaces	RS-485 standard, RS-232 optional
Power	86VAC~264VAC, 50~60HZ,300mA, 24VDC/0.3A
Operating Temperature	-10? to 45??10% to 90%RH,non-condensing
Storage Temperature	-10? to 45??10% to 90%RH,non-condensing
AD Converting rate	Internal converting rate: 300 times/sec
Sampling rate	Sampling rate:10~80 times/sec (option)

T831-V17.10

Specifications
Housing	Rear cover: SS304 stainless steel / Front housing: Aluminum Extrusion
Filtering	Built-in six-order dynamic filtering algorithm
Installation	Face-Plate mounting
Keypad	4 function keys
Interface	Drives up to 4 350? load cells, or equivalent parallel resistance>87?
Display	12832dots OLED dot matrix display, the font size of weight display is 9.5mm (H) 6.5mm (W)
Display Division	100~100,000, Up to 10 degrees
Serial Interfaces	USB 2.0 standard, RS-232 or RS-485 optional
Interface	Drives up to 4 350? load cells, or equivalent parallel resistance>87?
AD Simpling rate	10~1000Hz, selectable
Excitation	+4.5 VDC, 100mA
Power	Ac 86VAC~264VAC @50/60hz power supply, or dc 12VDC, 24VDC power supply
Indicator max power consumption	5W
Operating Temperature	-10?~45??10%~90%RH,non-condensing
Storage Temperature	-10?~45??10%~90%RH,non-condensing

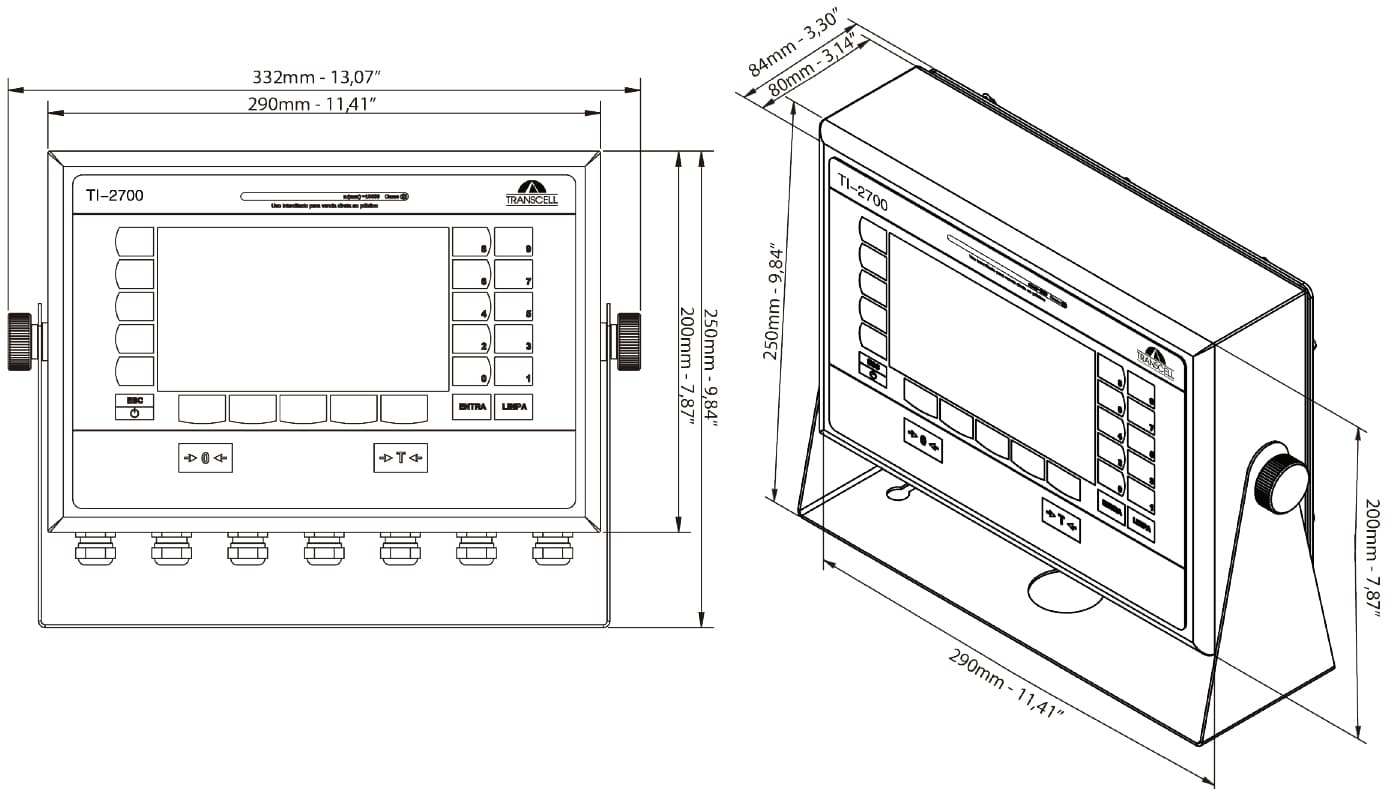

TI-2700-V17.7

Specifications
Voltage range:	85~245 Vcc
Consumption	10W
Operating Temperature:	-10°C ~ 40°C
Protection Degree	IP-65
Material	Stainless steel
Graphic Display	TFT 7RGB 800x480 pixels
Frontal panel	25 keys, including quick navigation
Keyboard	QWERTY (standard mini DIN PS/2 USB conector) + quick navigation keys (F1 to F12)
Serial output to printers	Epson LX300
Serial output	RS232 or RS485 (two wires) to comunication with PC and other devices
Ethernet Comunication	(optional)

LCT 1 Digital Junction Box

Specifications
Load Cell Excitation	+3.3 VDC
Load Cell Current	Drives up to four 350 ? Load Cells
Analog Signal Input Range	+/- 3.125 mV/V max
Analog Sensitivity	0.3 ?V/grad, minimum 0.6 ?V/grad, recommended minimum for Legal-for-Trade
A/D Conversion Rate	2 Hz to 1200 Hz (adjustable)
A/D Resolution	24 bits
No. of ADC channels	Four
Remote Functions	Zero, Start/Start Stream Data, Demand Data, ADC counts, power off
Serial Port	Full Duplex RS-232 Format
Power Requirements	4-14 VDC, 0.5 A
Dimensions	7.2 x 5.3 x 1.3 (184 mm x 134 mm x 32 mm)
Operating Temperature	-40°F to 104°F (-40°C to 40°C)
Optional Bluetooth Specifications	Version 2.0, Class I - Up to 100m unobstructed - (ISM) band at 2.4 to 2.485 GHz
NIST Classification	H-44 Class III at 10,000 Divisions, C.O.C. #pending
Warranty:	1 year

LCT 2 Digital Transmitter

Specifications
Load Cell Excitation	+3.3 VDC
Load Cell Current	Drives up to four 350 ? Load Cells
Analog Signal Input Range	+/- 3.125 mV/V max
Analog Sensitivity	0.3 ?V/grad, minimum 0.6 ?V/grad, recommended
A/D Conversion Rate	4.7 Hz to 4800 Hz (adjustable)
A/D Resolution	24 bits
No. of ADC channels	Four
Remote Functions	Zero, Start/Stop Stream Data, Demand Data, ADC counts
Serial Port	Half Duplex RS-485 Format
Power Requirements	24 VDC, 0.5 A
Dimensions	9.0 x 7.1 x 2.1(228 mm x 181 mm x 53 mm)
Operating Temperature	-14°F to 104°F (-10°C to 40°C)
Warranty:	1 year limited warranty applies

TI 1500VC Transmitter V18.6

Specifications
Load Cell Excitation	+3.3 VDC
Load Cell Current	Drives up to four 350 ? Load Cells
Analog Signal Input Range	0.2 mV/V min to 3.0 mV/V max
Analog Sensitivity	0.4 V/grad, Minimum 1.0 V/grad Recommended Minimum for Legal-for-Trade
Display Resolution	Up to 50,000 External Grads, Selectable
A/D Resolution	Up to 260,000 Internal Counts
Display	7-segment, 6 Digit LED Display
Power	15VDC, 24VDC, optional
Serial Port	Semi-Duplex RS-485 Format;4-20mA Analog Output; 0-10V Analog Output (Option)
Operating Temperature	-10ºC to 55ºC
Overall Dimensions	208mm x134mm x48.4mm

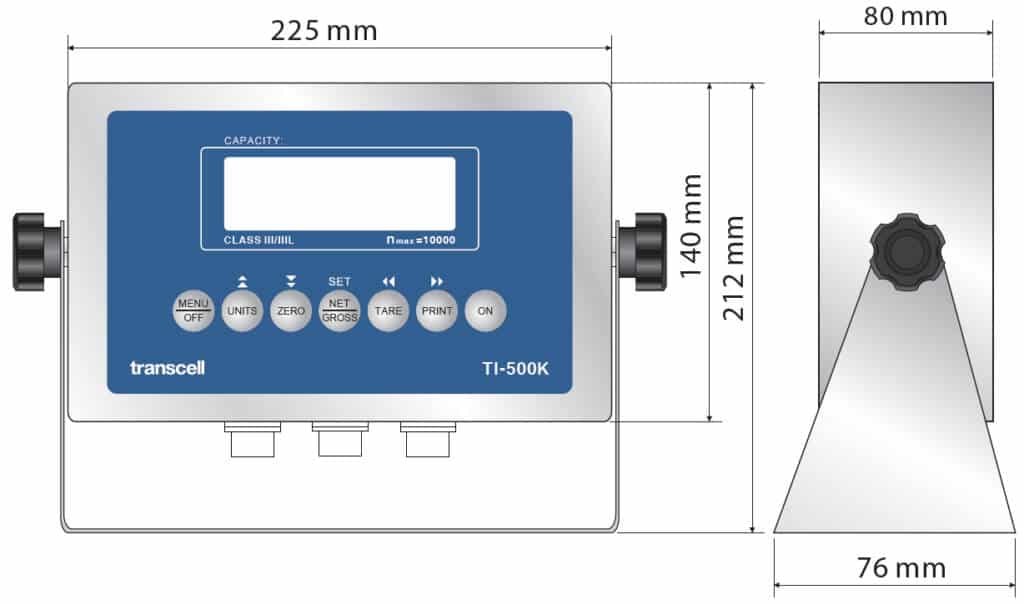

TI-500K

Specifications
Load Cell Excitation	+3.3 VDC
Load Cell Current	Drives up to four (4) 350 ? load cells
Analog Signal Input Range	+/- 3.125 mV/V (max)
Sensitivity	0.2?V/grad, minimum 0.4?V/grad, min value recommended
Annunciators	Zero, Tare, Gross, lb, kg, Stable, Net, PCS, Negative
Keyboard Functions	Menu/Off, Units, Zero, Net/Gross, Tare, Print, On
Serial Port	Full Duplex RS-232C
Power	AC 100-240V or DC 6V/3Ah rechargeable battery
DC Power Consumption	10 mA + 9 mA/350 ? load cell
A/D Conversion Rate	10 Hz
A/D Resolution	Up to 260,000 internal counts at 2 mV/V
Display	0.9LCD display
Display Resolution	Up to 50,000 external grads
Indicator Dimensions	8.8x 5.5x 3.1(225mm x 140mm x 80mm)
Operating Temperature	-10°C to 40°C (14°F to 104°F)
Warranty	1 year limited warranty applies

TI-500-V17.3	View Sheet
TI-500E-V17.3	View Sheet
TI-500E-PLUS	View Sheet
TI-500ESS-V17.3	View Sheet
TI-500SL-V17.3	View Sheet
TI-500RF	View Sheet
TI-500RF-SS	View Sheet
TI-700K-V19.7	View Sheet
TI-1500-V17.3	View Sheet
TI-1500B_Operation-Manual_Eng	View Sheet
TI-1520-V17.3	View Sheet
TI-1680-V17.3	View Sheet
T3-V17.3	View Sheet
T6-V17.3	View Sheet
T7-V17.3	View Sheet
T831-V17.10	View Sheet
TI-2700-V17.7	View Sheet
LCT-1-Digital-Junction-Box	View Sheet
LCT-2-Digital-Transmitter-150122	View Sheet
TI-1500VC-Transmitter-V18.6-1	View Sheet
TI-500K	View Sheet
