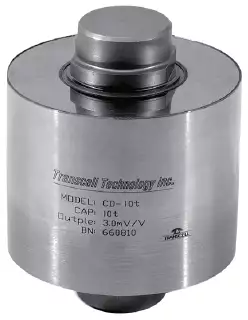

Sealed, stainless-steel construction allows the CD Series to survive the elements.  Excellent in applications with reliable load alignment.



Purchase in Our Store

Need a Custom Solution?

Contact Us

Stainless Steel Construction

Sealed

High Accuracy

Technical

Technical Specifications

View All Model Details

Insert Schematic Here

Specifications
Rated Output2.0mV/V ± 10%
Zero Balance± 1% of rated output
Creep± 0.03% of applied load
Nonlinearity± 0.03% of rated output
Hysteresis± 0.03% of rated output
Repeatability± 0.03% of rated output
Temp Effect on Output± 0.002% of reading/°C
Temp Effect on Zero± 0.002% of output/°C
Cable Length6m [20.28ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Input Impedance410 Ω
Output Impedance350 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC



Technical Data Sheet
