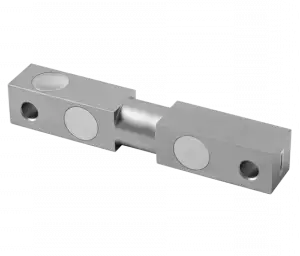

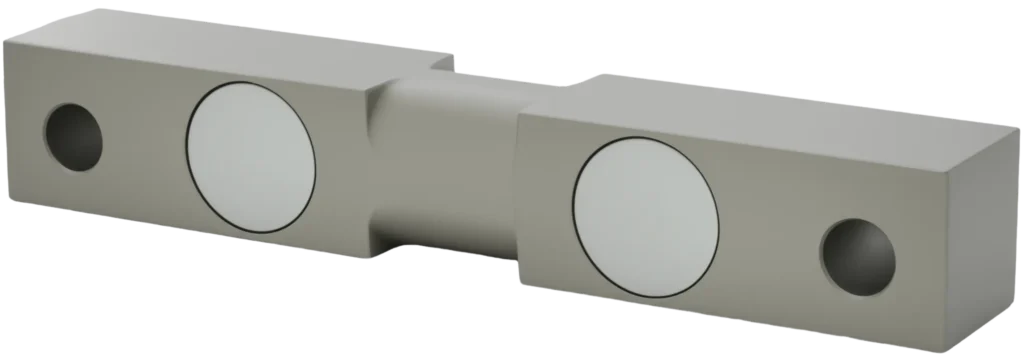

Double Ended Beam
Applications
Double ended shear beam load cell is alloy steel constructed. It provides high protection against corrosion by nickel-plated treatment and is perfect for applications including:
- Batching system
- Warehousing systems
- Inventory measurement processing
Purchase in Our Store
Need a Custom Solution?
Contact UsFeatures & Benefits
- Double Ended Shear Beam Load Cell
- Alloy Steel Construction
- High Accuracy and Stability
- Easy To Install
- Protected Against Corrosion by Nickel-Plated Treatment
* Suitable for truck scales, rail scales, bin and hopper scales, etc.
Technical Specifications
View All Model Details
Everything you need to know about these little
guys in a simple package.
DBS-V18.5 - Double Ended Shear Beam
DBSQ-V18.5 - Double Ended Shear Beam
| Specifications | |
|---|---|
| Rated Output | 300000 counts |
| Creep | ± 0.02% of applied load |
| Nonlinearity | ± 0.03% of rated output |
| Hysteresis | ± 0.03% of rated output |
| Repeatability | ± 0.03% of rated output |
| Temp Effect on Output | ± 0.002% of reading/°C |
| Temp Effect on Zero | ± 0.002% of output/°C |
| Cable Length | 13m [42.65ft] / 15m [49.21ft] |
| Max Output Distance | 1000 m |
| Safe Temp Range | -10 to +70°C |
| Temp Comp Range | -10 to +40°C |
| Safe Overload | 150% of capacity |
| Rated Excitation | 8 V DC |
| Max Excitation | 8 V DC |
| Input Current | 40 mA |
| Baud Rate | 19200 bps |
| DBS-V18.5 | View Sheet |
| DBSQ-V18.5 | View Sheet |
