The Model KSF-500 extensometer is a load sensor designed for force measurement on any load-bearing structure. The design also allows multiple sensors to be permanently mounted for more complex stress profiling and analysis. This extensometer provides a total solution for:

  • Weighing
  • Level control
  • Stress and fatigue monitoring.
Request a Quote

Need a Custom Solution?

Contact Us

Features & Benefits

  • Strain gage based sensor
  • Alloy steel construction
  • 2 bolt holes
  • IP66 Hermetically sealed protection

*Suitable for tank weighing or level systems, structural load measurements, etc.

Technical

Technical Specifications

View All Model Details

KSF-500 V17.7 - Extensometer

Specifications
Rated Output1.7mV/V @ 500με
Safe Overload300% of capacity
Ultimate Overload500% of capacity
Temp Comp Range-30 to +70°C
Temp Effect on Zero± 0.0025% of output/°C
Cable Length5m [16.9ft]
Input Impedance350 Ω
Output Impedance350 Ω
Insulation Resistance200 MΩ
Rated Excitation10 V DC/AC
Max Excitation15 V DC/AC
Technical Data Sheet
Industries

Industries

Experience to Solve Your Challenges

Proven product quality and performance combine with our engineering experience to solve challenges in any industry that need load cells and related equipment.

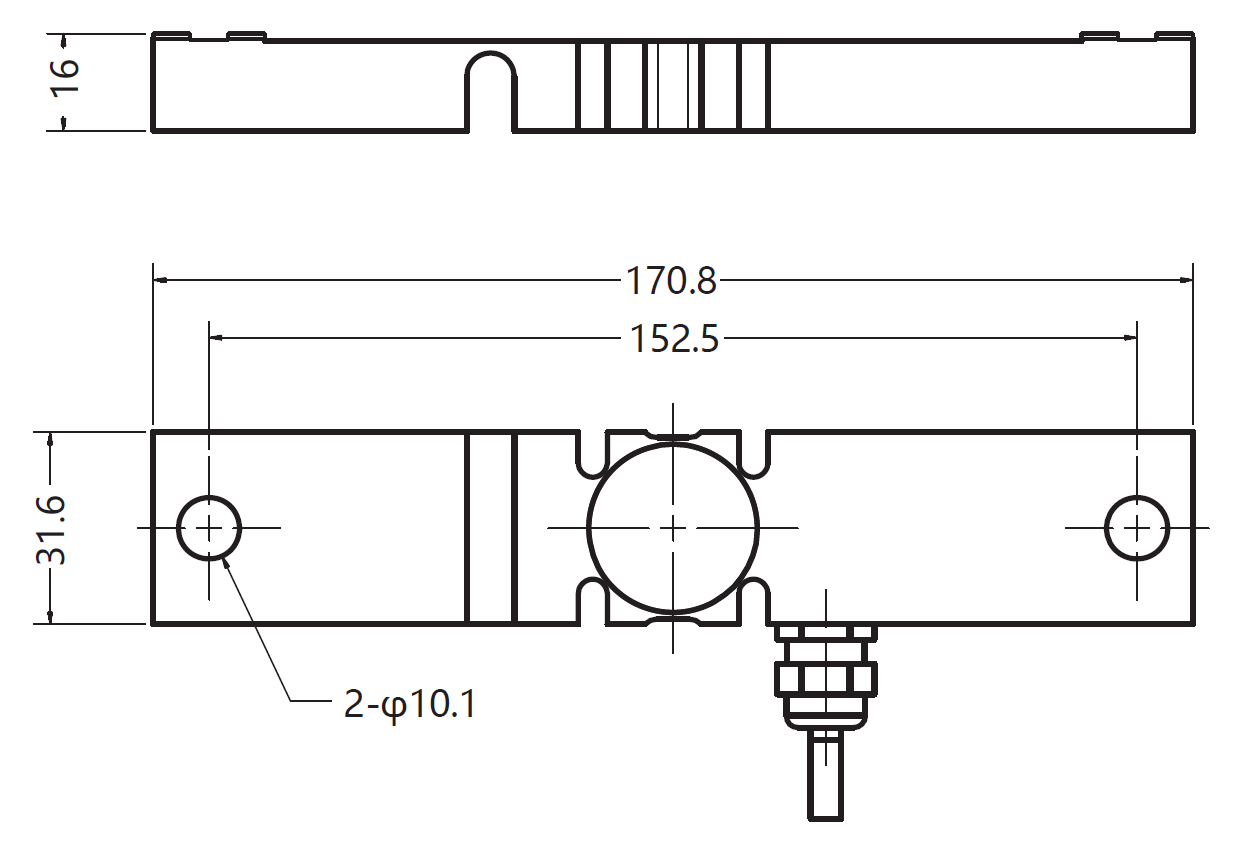

Part blueprints
