Applications

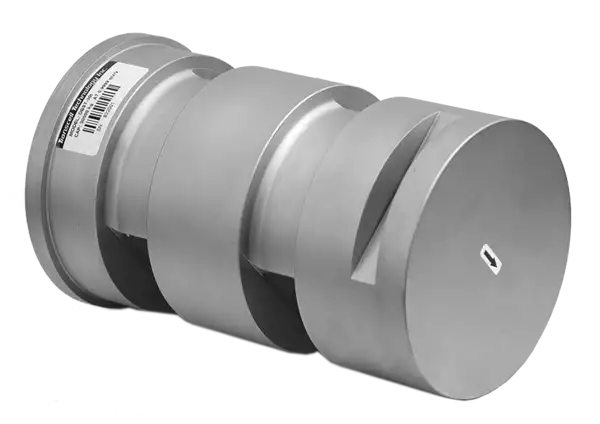

Add force measurement / feedback to a clevis or shackle connection.  Often used in cranes, lifting systems, or anchoring systems.



Purchase in Our Store

Need a Custom Solution?

Contact Us

Aggressive Price Point

Nickel-Plated Construction for Harsh Environments

Available in Stainless Steel

Variety of Analog and Digital Signal Outputs Available

Technical Specifications

View All Model Details

Insert Schematic Here

Specifications
Rated Output1.0 ± mV/V 1%
Zero Balance± 1.0% of rated output
Creep± 0.2% of applied load
Nonlinearity± 0.2% of rated output
Hysteresis± 0.2% of rated output
Repeatability± 0.2% of rated output
Temp Effect on Output± 0.02% of reading/°C
Temp Effect on Zero± 0.02% of output/°C
Cable Length6m [19.69ft]
Safe Temp Range-10 to +70°C
Temp Comp Range-10 to +40°C
Safe Overload150% of capacity
Ultimate Overload200% of capacity
Input Impedance775 Ω
Output Impedance700 Ω
Insulation Resistance5000 MΩ
Rated Excitation10 V DC
Max Excitation15 V DC
Technical Data Sheet
