Transcell planar beam is feature with table type load cell and aluminum construction. It is high-performing, stable and reliable for accurate measurement practice, which makes it perfect for medical weighing and industrial weighing.

Request a Quote

Need a Custom Solution?

Contact Us

Planar Beam Load Cells

  •         Tablet Type Load Cell
  •         Easy To Install
  •         Stable and Reliable
  •         Aluminum Construction

*Suitable for medical weighing, industrial weighing

Technical

Technical Specifications

View All Model Details

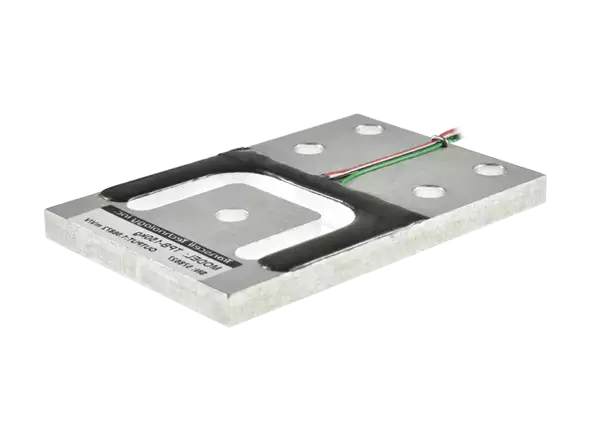

TPB V18.3 - Planar Beam

Specifications
Rated Output0.9mV/V ± 0.1%
Zero Balance± 5% of rated output
Creep± 0.017% of applied load
Nonlinearity± 0.017% of rated output
Hysteresis± 0.017% of rated output
Temp Effect on Output± 0.02% of reading/°C
Temp Effect on Zero± 0.01% of output/°C
Cable Length1m (3.75-15kg) / 1.5m (37.5-375kg)
Calibration in mV/V/Ω0.05%
Combined Error± 0.02% of rated output
Safe Temp Range-40 to +65°C
Temp Comp Range-10 to +40°C
Safe Overload300% of capacity
Ultimate Overload400% of capacity
Input Impedance1180 Ω
Output Impedance1000 Ω
Insulation Resistance5000 MΩ
Rated Excitation5 V DC/AC
Max Excitation15 V DC/AC
Technical Data Sheet
